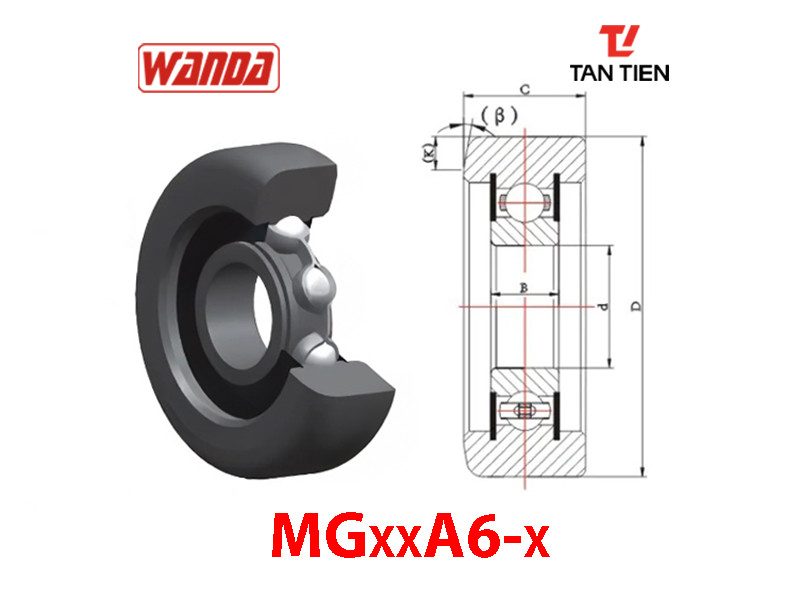

Bạc đạn khung nâng vát thẳng nhẹ 1 bên, lõi 1 hàng bi lăn
Mã phụ tùng: MGxxA6-x
Kích thước: dxDxC/B (mm)
Hotline 0911684111
| Mã Wanda | Kích thước (mm) | Mã tham chiếu | Khả năng chịu tải (kN) | |
| (dxDxC/B) | Tĩnh (Cr) | Động (Cor) | ||
| MG24A6–1 | 24*70.5*24/20.5 | 20.6 | 14.8 | |
| MG24A6–2 | 24*71.0*24/20.5 | 20.6 | 14.8 | |
| MG24A6–3 | 24*70.0*24/20.5 | 20.6 | 14.8 | |
| MG35A6–3 | 35*107.8*25/21 | 33.36 | 19.21 | |
| MG35A6–4 | 35*108.7*25/21 | 33.36 | 19.21 | |
| MG35A6–5 | 35*85*25/17 | 25.67 | 15.3 | |
| MG40A6–1 | 40*107.6*30/23 | 32926, 93007035 | 25.6 | 18.1 |
| MG40A6–2 | 40*107.7*30/20 | 32900, 93007007 | 25.6 | 18.1 |
| MG40A6–3 | 40*123*33.5/23 | 33943, 94007007 | 35.07 | 23.18 |
| MG40A6–10 | 40*98.5*28.5/22 | BSW503, MM0232 | 40.75 | 24.01 |
| MG45A6–5 | 45*127*29.92/25 | 2782771 | 52.86 | 31.83 |
| MG45A6–6 | 45*127.81*29.92/25 | 291971 | 52.86 | 31.83 |
| MG45A6–8 | 45*117*32/25 | MG309YY1 | 52.86 | 31.83 |
| MG45A6–9 | 45*118*32/25 | MG309YY1 | 52.86 | 31.83 |
| MG45A6–10 | 45*119*32/25 | MG309YY3 | 52.86 | 31.83 |
| MG45A6–11 | 45*120*32/25 | MG309YY4 | 52.86 | 31.83 |
| MG45A6–12 | 45*127.06*31.7/25 | 1751 | 52.86 | 31.83 |
| MG45A6–13 | 45*127*31.5/25 | 52.86 | 31.83 | |
| MG45A6–16 | 45*126.62*31.75/25 | MG309DDA–PHOS | 52.86 | 31.83 |
| MG50A6–1 | 50*129*34/27 | MG310YY1 | 62 | 38.5 |
| MG50A6–2 | 50*130*34/27 | MG310YY2, SX10A27LL | 62 | 38.5 |
| MG50A6–3 | 50*131*34/27 | MG310YY3 | 62 | 38.5 |
| MG50A6–4 | 50*132*34/27 | MG310YY4 | 62 | 38.5 |
| MG50AB–11M2T1 | 50*123*34/29 | CG92310T 123 | 56.04 | 34.21 |
| MG50A6–12M2T1 | 50*123.2*34/29 | CG92310T 123.2 | 56.04 | 34.21 |
| MG50A6–13M2T1 | 50*123.5*34/29 | CG92310T 123.5 | 56.04 | 34.21 |
| MG50A6–14M2T1 | 50*123.8*34/29 | CG92310T 123.8 | 56.04 | 34.21 |
| MG60A6–1 | 60*149*36/31 | MG312YY1 | 81.75 | 51.85 |
| MG60A6–2 | 60*150*36/31 | MG312YY2 | 81.75 | 51.85 |
| MG60A6–3 | 60*151*36/31 | MG312YY3 | 81.75 | 51.85 |
| MG60A6–4 | 60*152*36/31 | MG312YY4 | 81.75 | 51.85 |
| MG75A6-1M2T1 | 75*200*57/39 | 122.94 | 86.5 | |
