Bạc Đạn Xe Nâng WANDA
2025-11-10 11:52:02
Jiangsu Wanda Special Bearing Co., Ltd là công ty chuyên cung câp phân phối vòng bi xe nâng các hãng xe nâng trung quốc.
Sau đây là một vài mã bạc đạn khung càng xe nâng thương hiệu WANDA chúng tôi có tổng hợp:
Bạc Đạn Khung Nâng WANDA Loại 1 Hàng Bi MGxxA1-x
| Mã Bạc Đạn | Kích Thước (mm) | Chịu Tải Định Mức (KN) | Mã Phụ Tùng | |
| d*D*C/B | Cr | Cor | ||
| MG20A1-1 | 20*65*20/15 | 15,94 | 7,88 | |
| MG25A1-1T | 25*70*17/17 | 17,22 | 11,39 | 80605KT |
| MG25A1-2T | 25*80*22/17 | 17,22 | 11,39 | 180705KT |
| MG25A1-4T | 25*80*22/16 | 17,22 | 11,39 | |
| MG25A1-8 | 25*80*22/16 | 17,22 | 11,39 | |
| MG25A1-9M2T1 | 25*80*22/17 | 17,22 | 11,39 | |
| MG25A1-14 | 25*70*27/15 | 10,78 | 6,98 | |
| MG25A1-19 | 25*74.6*25.4/17 | 17,22 | 11,39 | MG305DDA |
| MG25A1-20 | 25*70.2*23/17 | 17,22 | 11,39 | 30305V |
| MG25A1-32 | 25*76.2*25.4/17 | 17,22 | 11,39 | MG305DD |
| MG25.4A1-1 | 25.4*74.6*25.4/17 | 17,22 | 11,39 | |
| MG28A1-3 | 28*77.2*27/18 | 25,67 | 15,30 | |
| MG30A1-2T | 30*90*22/17 | 25,67 | 15,30 | |
| MG30A1-3T | 30*91.5*24/19 | 27,00 | 15,19 | |
| MG30A1-10 | 30*82.5*27/19 | 27,00 | 15,19 | MG306DDB |
| MG30A1-17 | 30*88.9*25.4/19 | 27,00 | 15,19 | MG306DD |
| MG30A1-34T | 30*92.5*24/19 | 27,00 | 15,19 | |
| MG35A1-2T | 35*102*25.4/20 | 33,36 | 19,21 | 80607KT |
| MG35A1-13 | 35*80*25/21 | 33,36 | 19,21 | |
| MG35A1-16 | 35*101.6*28.58/21 | 33,36 | 19,21 | MG307FFA |
| MG35A1-47 | 35*92*31.75/21 | 33,36 | 19,21 | MG207FFU |
| MG35A1-89 | 35*81.86*27.1/17 | 25,67 | 15,30 | MG207FFA |
| MG35A1-132 | 35*95.377*25.3/21 | 33,36 | 19,21 | |
| MG35A1-135 | 35*94.62*25.4/21 | 33,36 | 19,21 | MG307FFK |
| MG35A1-178 | 35*88.4*31.88/17 | 25,67 | 15,30 | MG207FFB |
| MG35A1-206 | 35*102*25.4/20 | 33,36 | 19,21 | |
| MG40A1-1M2T1 | 40*102*25.5/23 | 40,75 | 24,01 | |
| MG40A1-4M2T1 | 40*109.7*32/23 | 40,75 | 24,01 | |
| MG40A1-8T | 40*109.7*32/23 | 40,75 | 24,01 | 180708KT |
| MG40A1-22 | 40*101.42*28.575/23 | 40,75 | 24,01 | |
| MG40A1-23 | 40*102.24*28.575/23 | 40,75 | 24,01 | |
| MG40A1-30 | 40*107.28*26.17/22 | 40,75 | 24,01 | |
| MG40A1-41 | 40*114.9*28.21/23 | 40,75 | 24,01 | |
| MG40A1-43 | 40*94.99*28.57/21 | 40,75 | 24,01 | |
| MG40A1-46 | 40*115*28.2/23 | 40,75 | 24,01 | |
| MG40A1-97 | 40*109.7*32/23 | 40,75 | 24,01 | 30708 |
| MG40A1-104 | 40*95*28.58/21 | 29,52 | 18,14 | MG208FFH |
| MG40A1-124 | 40*101.6*28.58/23 | 40,75 | 24,01 | MG308FFH |
| MG40A1-141 | 40*113.95*31.75/23 | 40,75 | 24,01 | MG308FFA |
| MG40A1-148 | 40*112*32/23 | 40,75 | 24,01 | |
| MG40A1-194 | 40*101.35*28.58/21 | 29,52 | 18,14 | MG208FFK |
| MG40A1-229 | 40*106.64*26.17/22 | 40,75 | 24,01 | |
| MG45A1-2M2T1 | 45*123.5*34/25 | 52,86 | 31,83 | |
| MG45A1-14 | 45*119.5*29/25 | 52,86 | 31,83 | |
| MG45A1-43 | 45*100.96*28.5/19 | 31,67 | 20,68 | MG209DD |
| MG45A1-62 | 45*127.06*31.75/25 | 52,86 | 31,83 | MG309DDA |
| MG45A1-14 | 45*119*29/25 | 52,86 | 31,83 | 277P8-22052 |
| MG45A1-70 | 45*119*30/25 | 52,86 | 31,83 | 30309 |
| MG45A1-71 | 45*128.22*31.75/25 | 52,86 | 31,83 | MG309DD |
| MG45A1-129 | 45*120*32/25 | 52,86 | 31,83 | |
| MG45A1-149M2T1 | 45*124*34/25 | 52,86 | 31,83 | |
| MG50A1-1T | 50*130*40/27 | 61,86 | 37,94 | 10310HT |
| MG55A1-1T | 55*110*31.34/21 | 43,38 | 29,22 | 80711K |
| MG55A1-2T | 55*149*45/33 | 77,44 | 62,71 | 80611K5T |
| MG55A1-3T | 55*149.5*45/33 | 77,44 | 62,71 | 80611K6T |
| MG55A1-4T | 55*151*45/33 | 77,44 | 62,71 | 80611K2T |
| MG55A1-5T | 55*165*45/33 | 77,44 | 62,71 | 80611K3T |
| MG55A1-43 | 55*151.9*38.1/29 | 71,57 | 44,76 | MG311FFA |
| MG55A1-51T | 55*119.2*34/25 | 41,02 | 30,87 | 80511K0T |
| MG55A1-52T | 55*119.6*34/25 | 41,02 | 30,87 | 80511K1T |
| MG55A1-53T | 55*120*34/25 | 41,02 | 30,87 | 80511K2T |
| MG55A1-60T | 55*118.2*34/25 | 41,02 | 30,87 | 80511KX1 |
| MG55A1-65 | 55*164.3*38.1/29 | 71,57 | 44,76 | MG311FF |
| MG55A1-66 | 55*151.89*38.1/29 | 71,57 | 44,76 | MG311ZZA |
| MG60A1-5 | 60*126.7*31/22 | 47,76 | 32,93 | |
| MG60A1-6 | 60*149.5*45/31 | 81,75 | 51,85 | |
| MG60A1-16T | 60*165*45/33 | 93,87 | 60,44 | |
| MG65A1-5 | 65*181*56/33 | 93,87 | 60,44 | |
| MG65A1-11 | 65*174.5*45/33 | 93,87 | 60,44 | |
| MG65A1-12 | 65*183.5*45/33 | 93,87 | 60,44 | |
| MG70A1-2 | 70*200*56/35 | 104,13 | 68,04 | |
| MG75A1-13 | 75*179.5*52/40 | 113,42 | 76,97 | |
| MG75A1-14 | 75*180*45/37 | 122,94 | 86,50 | |
| MG75A1-18 | 75*199.5*50/37 | 122,94 | 86,50 | |
| MG75A1-19 | 75*200*57/37 | 122,94 | 86,50 | |
| MG80A1-1 | 80*215*60/43 | 144,00 | 108,49 | |
| MG85A1-1 | 85*169*45/34 | 77,16 | 59,28 | |
| MG90A1-2M1 | 90*224.5*58/43 | 144,00 | 108,49 | |
| MG90A1-5M1 | 90*225**59/43 | 122,14 | 92,72 | |
| MG90A1-6M1 | 90*244.15*68/43 | 122,14 | 92,72 | |
| MG90A1-7M1 | 90*223*59/43 | 122,14 | 92,72 | |
| MG90A1-8 | 90*220*55/43 | 144,00 | 108,49 | |
| MG100A1-4M1 | 100*250*65/47 | 183,69 | 153,08 | |

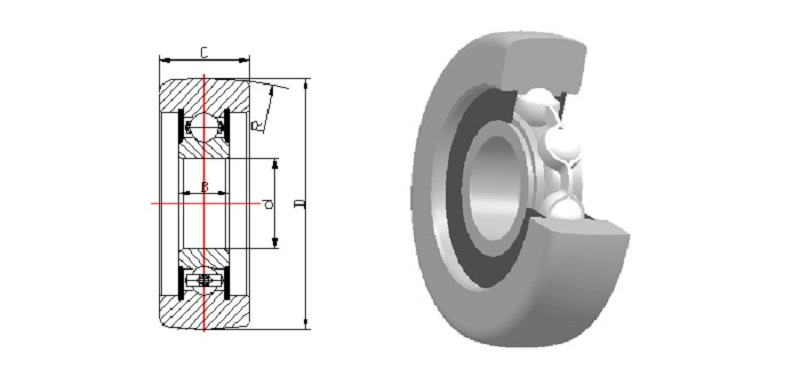

Bạc Đạn Khung MGxxA2-x
| Mã Bạc Đạn | Kích Thước | Chịu Tải Định Mức | Mã Phụ Tùng | |
| d*D*C/B | Cr | Cor | ||
| MG25A2-1 | 25*76.2*25.4/17 | 22,38 | 11,49 | MG305DDB |
| MG25A2-11 | 25*52.4*17/17 | 14,02 | 7,90 | MRS900 |
| MG25A2-17 | 25*62.4*20/20 | 22,38 | 11,49 | MRS948 |
| MG28A2-1 | 28*78.1*24/21 | 26,86 | 14,11 | |
| MG30A2-2 | 30*86.36*28.58/16.6 | 19,46 | 11,31 | MG206FFK |
| MG30A2-9 | 30*81*29/16.59 | 19,46 | 11,31 | MG206FFU |
| MG30A2-10 | 30*82*29/16.59 | 19,46 | 11,31 | MG206FFUB |
| MG30A2-11 | 30*88*29/16.59 | 19,46 | 11,31 | MG206FFUP |
| MG30A2-14 | 30*70*22/22 | 19,46 | 11,31 | MRS901 |
| MG30A2-17 | 30*78*22/22 | 19,46 | 11,31 | MRS907 |
| MG35A2-15 | 35*92*31.2/20 | 33,36 | 19,21 | |
| MG35A2-21 | 35*101.33*28.58/21 | 33,36 | 19,21 | MG307FFP |
| MG35A2-28 | 35*82.2*31.2/20 | 33,36 | 19,21 | MG207FFWB |
| MG36A2-2 | 36*101.4*27.5/21 | 33,36 | 19,21 | |
| MG40A2-13 | 40*109.6*31/23 | 40,75 | 24,01 | |
| MG40A2-14 | 40*108.6*31/23 | 40,75 | 24,01 | MG308FFAB |
| MG40A2-17 | 40*112*32.23/21.65 | 35,07 | 23,18 | MG308FFUA |
| MG45A2-2 | 45*117*40/25 | 52,86 | 31,83 | |
| MG45A2-5 | 45*114*35/25 | 52,86 | 31,83 | |
| MG50A2-1T | 50*123*40/27 | 61,86 | 37,94 | 10310RT |
| MG50A2-2 | 50*129*40/27 | 61,86 | 37,94 | |
| MG50A2-3 | 50*130*40/27 | 61,86 | 37,94 | |
| MG50A2-4 | 50*131*40/27 | 61,86 | 37,94 | |
| MG50A2-5T | 50*123.5*40/27 | 61,86 | 37,94 | 10310RT |
| MG50A2-6T | 50*123.8*40/27 | 61,86 | 37,94 | 10310RT |
| MG70A2-1M1 | 70*200*56/37 | 122,94 | 86,50 | |
| MG70A2-2M1 | 70*200*56/39 | 122,94 | 86,50 | |
| MG74.85A2-1M1 | 74.85*200*57/39 | 122,94 | 86,50 | |
| MG75A2-1M1 | 75*200*57/39 | 122,94 | 86,50 | |
| MG100A2-1M2T1 | 100*203*52/34 | 122,00 | 93,00 | |
| MG100A2-4 | 100*205*52/34 | 122,00 | 93,00 | |

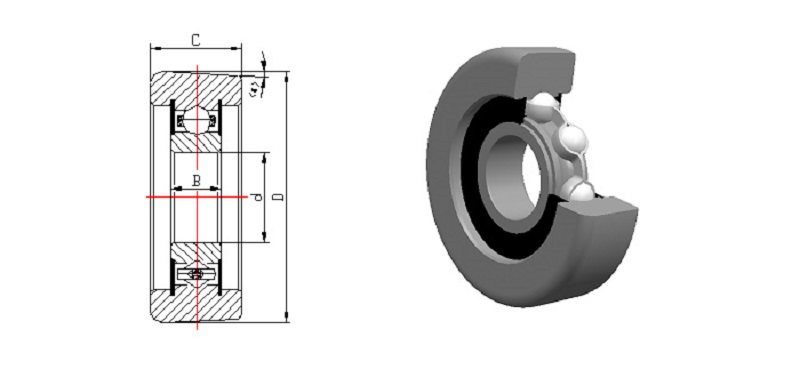

MGXXA3-X
| Mã Bạc Đạn | Kích Thước | Chịu Tải Định Mức | Mã Phụ Tùng | |
| d*D*C/B | Cr | Cor | ||
| MG24A3-1 | 24*61.7*24/16 | 20,6 | 14,8 | |
| MG30A3-1 | 30*81.28*25.4*19.6 | 19,46 | 11,31 | MG206FFA |
| MG35A3-1 | 35*107*25/21 | 33,36 | 19,21 | |
| MG35A3-2 | 35*91.9*32/21 | 33,36 | 19,21 | |
| MG35A3-3 | 35*95*30/21 | 33,36 | 19,21 | 30307V-B |
| MG35A3-4 | 35*101.35*28.58/21 | 33,36 | 19,21 | MG307FFE |
| MG40A3-1T | 40*112.3*29/18 | 29,52 | 18,14 | Y30208T |
| MG40A3-8 | 40*119.2*34/25 | 40,75 | 24,01 | |
| MG40A3-9T | 40*109.7*28/23 | 40,75 | 24,01 | 130308KT |
| MG40A3-11 | 40*112.2*30/23 | 40,75 | 24,01 | 30308V |
| MG40A3-12 | 40*100.838*25.4/19.6 | 29,52 | 18,14 | MG208FFA |
| MG40A3-13 | 40*118.5*28/23 | 40,75 | 24,01 | |
| MG40A3-14T | 40*112.4*29/18 | 29,52 | 18,14 | Y30208CT |
| MG40A3-15T | 40*112.8*29/18 | 29,52 | 18,14 | Y30208JT |
| MG40A3-16 | 40*111*29/18 | 29,52 | 18,14 | Y30208CT(D=111) |
| MG45A3-1 | 45*118.5*26/25 | 52,86 | 31,83 | |
| MG45A3-2T | 45*118.5*26/25 | 52,86 | 31,83 | 130309KT |
| MG55A3-1T | 55*120*34/25 | 41,02 | 30,87 | 80511YT |
| MG55A3-2T | 55*121.5*34/25 | 41,02 | 30,87 | 80511Y1T |
| MG55A3-3T | 55*122.5*34/25 | 41,02 | 30,87 | 80511Y2T |
| MG55A3-6T | 55*123.5*34/25 | 41,02 | 30,87 | 80511Y3T |
| MG55A3-7 | 55*121.5*34/25 | 41,02 | 30,87 | 980811 |
| MG55A3-9 | 55*112.23*31.34/21 | 43,38 | 29,22 | 30711K1 |
| MG55A3-10 | 55*121.4*36/25 | 41,02 | 30,87 | 30811K1 |
| MG55A3-11T | 55*121*34/25 | 41,02 | 30,87 | 980811JT |
| MG55A3-12 | 55*112.5*35/21 | 43,38 | 29,22 | |
| MG55A3-13 | 55*122.5*34/25 | 41,02 | 30,87 | 30511K1-C |
| MG65A3-1 | 65*161*45/33 | 93,87 | 60,44 | 80613K |

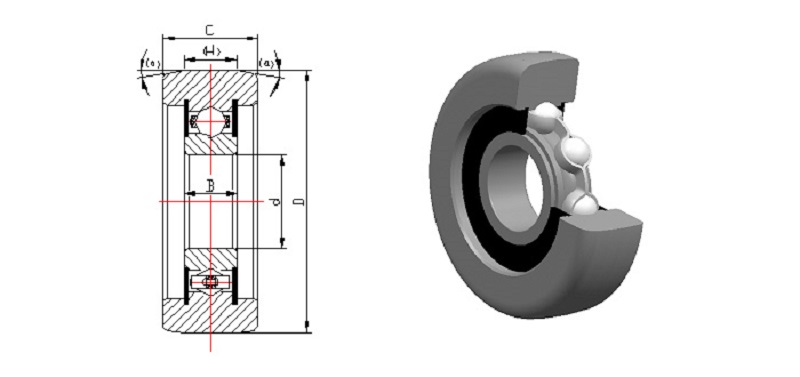

MGxxA4-x
| Mã Bạc Đạn | Kích Thước | Chịu Tải Định Mức (KN) | Mã Phụ Tùng | |
| d*D*C/B | Cr | Cor | ||
| MG30A4-1M2T1 | 30*91.5*24/19 | 27,00 | 15,19 | |
| MG30A4-2 | 30*92*24/19 | 27,00 | 15,19 | |
| MG30A4-3M2T1 | 30*92*24/19 | 27,00 | 15,19 | |
| MG30A4-5 | 30*91.5*24/19 | 27,00 | 15,19 | |
| MG35A4-1M2T1 | 35*102*28/21 | 33,36 | 19,21 | |
| MG35A4-4 | 35*107.9*31/21 | 33,36 | 19,21 | |
| MG35A4-5M2T1 | 35*102.3*28/21 | 33,36 | 19,21 | |
| MG40A4-2T | 40*111.3*29/18 | 29,52 | 18,14 | Y30208-N |
| MG40A4-4 | 40*94.8*28/23 | 40,75 | 24,01 | |
| MG40A4-5 | 40*95.2*28/23 | 40,75 | 24,01 | |
| MG40A4-6 | 40*100*30/23 | 40,75 | 24,01 | |
| MG45A4-1 | 45*101.346*28.47/19 | 31,67 | 20,68 | |
| MG45A4-2 | 45*101.2*28.3/19 | 31,67 | 20,68 | |
| MG45A4-6M2T1 | 45*119*32/25 | 53,00 | 32,00 | |
| MG45A4-7M2T1 | 45*119.5*29/25 | 53,00 | 32,00 | |
| MG45A4-8M2T1 | 45*120*29/25 | 53,00 | 32,00 | |
| MG45A4-13 | 45*120*29/25 | 52,86 | 31,83 | |
| MG45A4-15M2T1 | 45*120*32/25 | 53,00 | 32,00 | |
| MG45A4-16 | 45*101*28/19 | 31,67 | 20,68 | |
| MG50A4-2M2T1 | 50*102*30/25.5 | 35,07 | 23,02 | |
| MG50A4-4M2T1 | 50*143.5*41/27 | 61,86 | 37,94 | |
| MG50A4-5M2T1 | 50*143.2*41/27 | 61,86 | 37,94 | |
| MG50A4-7 | 50*102*30/25.5 | 35,07 | 23,02 | |
| MG55A4-2M2T1 | 55*151.5*45/29 | 71,57 | 44,76 | |
| MG55A4-3T | 55*151.5*45/29 | 71,57 | 44,76 | 10311T |
| MG55A4-4M2T1 | 55*152*45/29 | 71,57 | 44,76 | |
| MG55A4-8 | 55*118.5*34/25 | 41,02 | 30,87 | 980811B |
| MG55A4-9 | 55*152*45/29 | 71,57 | 44,76 | |
| MG55A4-12T | 55*118.5*34/25 | 41,02 | 30,87 | 980811NX |
| MG55A4-13T | 55*119.2*34/25 | 41,02 | 30,87 | 980811NT |
| MG55A4-14 | 55*152.5*45/29 | 71,57 | 44,76 | |
| MG55A4-15 | 55*151.5*45/29 | 71,57 | 44,76 | |
| MG55A4-18T | 55*118.7*34/25 | 41,02 | 30,87 | 980811NX-Y |
| MG60A4-1 | 60*148*45/31 | 81,75 | 51,85 | |
| MG60A4-2 | 60*150*45/31 | 81,75 | 51,85 | |
| MG60A4-3 | 60*152*45/31 | 81,75 | 51,85 | |
| MG65A4-2M2T1 | 65*184*45/33 | 93,87 | 60,44 | |
| MG65A4-3M2T1 | 65*183.5*45/33 | 93,87 | 60,44 | |
| MG65A4-6 | 65*183.5*45/33 | 93,87 | 60,44 | |
| MG70A4-1M1 | 70*200*56/35 | 104,13 | 68,04 | |
| MG80A4-1 | 80*215*60/43 | 144,00 | 108,49 | |
| MG85A4-1M2T1 | 85*169*45/34 | 83,21 | 63,96 | |
| MG100A4-1 | 100*203*52/34 | 122,00 | 93,00 | |
| MG100A4-2 | 100*205*52/34 | 122,00 | 93,00 | |
| MG100A4-3 | 100*207*52/34 | 122,00 | 93,00 | |
| MG100A4-4M1 | 100*248*64/47 | 183,69 | 153,08 | |

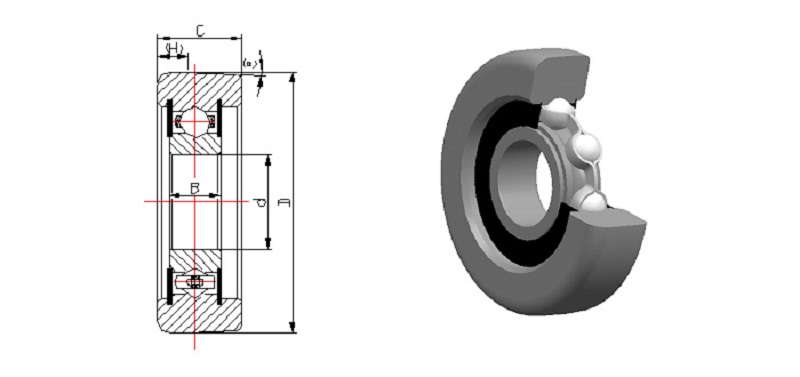

MGxxA5-x.
| Mã Bạc Đạn | Kích Thước | Chiu Tải Định Mức (KN) | Mã Phụ tùng | |
| d*D*C/B | Cr | Cor | ||
| MG30A5-1M2T1 | 30*84.5*25/19 | 27,00 | 15,19 | |
| MG30A5-2 | 30*84.5*25/19 | 27,00 | 15,19 | |
| MG30A5-3M2T1 | 30*92*24/19 | 27,00 | 15,19 | |
| MG35A5-1T | 35*102*25.5/21 | 33,36 | 19,21 | 180707KT |
| MG35A5-2M2T1 | 35*102*28/21 | 33,36 | 19,21 | |
| MG35A5-4M2T1 | 35*102.5*28/21 | 33,36 | 19,21 | |
| MG35A5-8M2T1 | 35*94.5*25/21 | 33,36 | 19,21 | |
| MG35A5-9M2T1 | 35*106.5*25/21 | 33,36 | 19,21 | |
| MG35A5-10M2T1 | 35*107.7*25/21 | 33,36 | 19,21 | |
| MG35A5-15M2T1 | 35*95.7*25/21 | 33,36 | 19,21 | |
| MG35A5-16M2T1 | 35*96.7*25/21 | 33,36 | 19,21 | |
| MG35A5-17M2T1 | 35*108.7*25/21 | 33,36 | 19,21 | |
| MG40A5-1 | 40*101.6*28.58/23 | 40,75 | 24,01 | |
| MG40A5-2M2T1 | 40*113.8*32/23 | 40,75 | 24,01 | |
| MG40A5-3M2T1 | 40*114.3*32/23 | 40,75 | 24,01 | |
| MG40A5-4M2T1 | 40*114.8*32/23 | 40,75 | 24,01 | |
| MG40A5-5 | 40*113.8*32/23 | 40,75 | 24,01 | |
| MG40A5-6M2T1 | 40*118.5*28/23 | 40,75 | 24,01 | |
| MG40A5-7 | 40*114.3*32/23 | 40,75 | 24,01 | |
| MG40A5-8M2T1 | 40*119.7*28/23 | 40,75 | 24,01 | |
| MG40A5-9M2T1 | 40*120.7*28/23 | 40,75 | 24,01 | |
| MG45A5-3T | 45*119*29/25 | 52,86 | 31,83 | 180709KT |
| MG45A5-5M2T1 | 45*119.3*29/25 | 52,86 | 31,83 | |
| MG45A5-6M2T1 | 45*119*29/25 | 48,80 | 29,03 | |
| MG45A5-8M2T1 | 45*119.5*29/25 | 48,80 | 29,03 | |
| MG45A5-10 | 45*119*29/25 | 48,80 | 29,03 | |
| MG45A5-13M2T1 | 45*119.4*29/25 | 48,80 | 29,03 | |
| MG50A5-1 | 50*123.3*34/27 | 61,86 | 37,94 | |
| MG50A5-2 | 50*123.9*34/27 | 61,86 | 37,94 | |
| MG60A5-4M2T1 | 60*148.5*45/31 | 81,75 | 51,85 | |
| MG60A5-5M2T1 | 60*149.5*45/31 | 81,75 | 51,85 | |

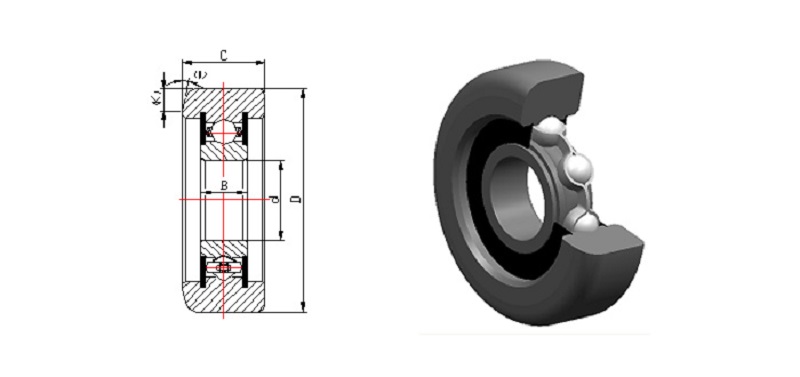

MGxxA6-x
| Mã Bạc Đạn | Kích Thước | Chiu Tải Định Mức (KN) | Mã Phụ tùng | |
| d*D*C/B | Cr | Cor | ||
| MG24A6-1 | 24*70.5*24/20.5 | 20,06 | 14,08 | |
| MG24A6-2 | 24*71.0*24/20.5 | 20,06 | 14,08 | |
| MG24A6-3 | 24*70.0*24/20.5 | 20,06 | 14,08 | |
| MG35A6-3 | 35*107.8*25/21 | 33,36 | 19,21 | |
| MG35A6-4 | 35*108.7*25/21 | 33,36 | 19,21 | |
| MG35A6-5 | 35*85*25/17 | 25,67 | 15,03 | |
| MG40A6-1 | 40*107.6*30/23 | 25,06 | 18,01 | |
| MG40A6-2 | 40*107.7*30/20 | 25,06 | 18,01 | |
| MG40A6-3 | 40*123*33.5/23 | 35,07 | 23,18 | |
| MG40A6-10 | 40*98.5*28.5/22 | 40,75 | 24,01 | |
| MG45A6-5 | 45*127*29.92/25 | 52,86 | 31,83 | |
| MG45A6-6 | 45*127.81*29.92/25 | 52,86 | 31,83 | |
| MG45A6-8 | 45*117*32/25 | 52,86 | 31,83 | |
| MG45A6-9 | 45*118*32/25 | 52,86 | 31,83 | |
| MG45A6-10 | 45*119*32/25 | 52,86 | 31,83 | |
| MG45A6-11 | 45*120*32/25 | 52,86 | 31,83 | |
| MG45A6-12 | 45*127.06*31.7/25 | 52,86 | 31,83 | |
| MG45A6-13 | 45*127*31.5/25 | 52,86 | 31,83 | |
| MG45A6-16 | 45*126.62*31.75/25 | 52,86 | 31,83 | |
| MG50A6-1 | 50*129*34/27 | 62,00 | 38,50 | |
| MG50A6-2 | 50*130*34/27 | 62,00 | 38,50 | |
| MG50A6-3 | 50*131*34/27 | 62,00 | 38,50 | |
| MG50A6-4 | 50*132*34/27 | 62,00 | 38,50 | |
| MG50A6-7T | 50*123*34/29 | 62,00 | 38,50 | |
| MG60A6-1 | 60*149*36/31 | 81,75 | 51,85 | |
| MG60A6-2 | 60*150*36/31 | 81,75 | 51,85 | |
| MG60A6-3 | 60*151*36/31 | 81,75 | 51,85 | |
| MG60A6-4 | 60*152*36/31 | 81,75 | 51,85 | |
| MG75A6-1M2T1 | 75*200*57/39 | 122,94 | 86,50 | |

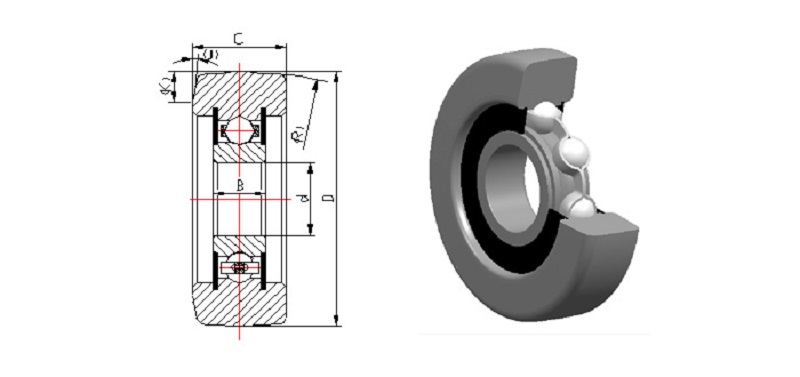

MGxxA7-x
| Mã Bạc Đạn | Kích Thước | Chiu Tải Định Mức (KN) | Mã Phụ tùng | |
| d*D*C/B | Cr | Cor | ||
| MG20A7-1M1 | 20*62.2*28.5/15 | 15,94 | 7,88 | |
| MG24A7-1 | 24*61.8*24/15 | 18,14 | 10,88 | |
| MG24A7-2 | 24*69.5*24/20 | 20,60 | 14,80 | |
| MG24A7-5 | 24*71.0*24/20 | 20,60 | 14,80 | |
| MG24A7-8 | 24*70*26/15 | 18,14 | 10,18 | |
| MG24A7-9 | 24*69.5*26/15 | 18,14 | 10,18 | |
| MG28A7-5 | 28*75.2*26/21 | 26,63 | 13,89 | |
| MG28A7-6 | 28*80.5*24/21 | 26,63 | 13,89 | |
| MG28A7-9 | 28*80*24/21 | 26,63 | 13,89 | |
| MG28A7-10 | 28*79.5*24/21 | 26,63 | 13,89 | |
| MG28A7-11 | 28*75.2*26/21 | 26,63 | 13,89 | |
| MG28A7-19 | 28*81*24*21 | 26,63 | 13,89 | |
| MG28A7-27 | 28*77.4*26/21 | 26,63 | 13,89 | |
| MG33A7-1 | 33*75.3*24/20.5 | 19,05 | 11,68 | |
| MG33A7-3 | 33*76.2*24/20.5 | 19,05 | 11,68 | |
| MG35A7-1M2T1 | 35*97*28*21 | 33,36 | 19,21 | |
| MG35A7-2M2T1 | 35*97.5*28/21 | 33,36 | 19,21 | |
| MG35A7-3M2T1 | 35*98*28/21 | 33,36 | 19,21 | |
| MG35A7-4M2T1 | 35*105*28/21 | 33,36 | 19,21 | |
| MG35A7-5M2T1 | 35*105.5*28/21 | 33,36 | 19,21 | |
| MG35A7-6M2T1 | 35*106*28/21 | 33,36 | 19,21 | |
| MG35A7-7M2T1 | 35*102*28/21 | 33,36 | 19,21 | |
| MG35A7-8M2T1 | 35*102.5*28/21 | 33,36 | 19,21 | |
| MG35A7-9M2T1 | 35*103*28/21 | 33,36 | 19,21 | |
| MG35A7-10M2T1 | 35*109*28/21 | 33,36 | 19,21 | |
| MG35A7-11M2T1 | 35*109.5*28/21 | 33,36 | 19,21 | |
| MG35A7-12M2T1 | 35*110*28/21 | 33,36 | 19,21 | |
| MG35A7-13M2T1 | 35*94*28/21 | 33,36 | 19,21 | |
| MG35A7-14M2T1 | 35*94.5*28/21 | 33,36 | 19,21 | |
| MG35A7-15M2T1 | 35*95*28/21 | 33,36 | 19,21 | |
| MG35A7-16M2T1 | 35*96.5*28/21 | 33,36 | 19,21 | |
| MG35A7-17 | 35*88.2*37/21 | 33,36 | 19,21 | |
| MG35A7-26M2T1 | 35*97*25/21 | 33,36 | 19,21 | |
| MG35A7-30 | 35*102.5*28/21 | 33,36 | 19,21 | |
| MG35A7-32 | 35*97.5*28/21 | 33,36 | 19,21 | |
| MG40A7-1M2T1 | 40*115*32/23 | 40,75 | 24,01 | |
| MG40A7-2M2T1 | 40*115.5*32/23 | 40,75 | 24,01 | |
| MG40A7-3M2T1 | 40*116*32/23 | 40,75 | 24,01 | |
| MG40A7-5 | 40*97.5*28.5/25 | 40,75 | 24,01 | |
| MG40A7-9M2T1 | 40*123*32/23 | 40,75 | 24,01 | |
| MG40A7-10M2T1 | 40*123.5*32/23 | 40,75 | 24,01 | |
| MG40A7-11M2T1 | 40*124*32/23 | 40,75 | 24,01 | |
| MG40A7-14 | 40*99*27/23 | 40,75 | 24,01 | |
| MG40A7-19 | 40*115*32/23 | 40,75 | 24,01 | |
| MG40A7-21 | 40*89.9*29/23.8 | 29,52 | 18,14 | |
| MG40A7-22 | 40*101*40/25 | 40,75 | 24,01 | |
| MG40A7-23M2T1 | 40*119*27/23 | 40,75 | 24,01 | |
| MG40A7-24M2T1 | 40*119.5*27/23 | 40,75 | 24,01 | |
| MG40A7-25M2T1 | 40*120*27/23 | 40,75 | 24,01 | |
| MG40A7-26 | 40*102.5*25.5/22 | 29,52 | 18,14 | |
| MG40A7-37M2T1 | 40*109*23/23 | 40,75 | 24,01 | |
| MG45A7-4 | 45*115*30/25 | 52,86 | 31,83 | |
| MG45A7-7 | 45*117*30/25 | 52,86 | 31,83 | |
| MG45A7-10 | 45*113.8*30/25 | 52,86 | 31,83 | |
| MG45A7-12M2T1 | 45*119.5*32/25 | 48,80 | 29,30 | |
| MG45A7-14 | 45*114*35/25 | 52,86 | 31,83 | |
| MG45A7-15 | 45*115*35/25 | 52,86 | 31,83 | |
| MG45A7-16 | 45*116*35/25 | 52,86 | 31,83 | |
| MG45A7-17 | 45*117*40/25 | 52,86 | 31,83 | |
| MG45A7-18 | 45*118*40/25 | 52,86 | 31,83 | |
| MG45A7-19 | 45*119*40/25 | 52,86 | 31,83 | |
| MG45A7-20 | 45*127.06*31.75/25 | 52,86 | 31,83 | |
| MG50A7-1 | 50*123.5*40/33 | 61,86 | 37,94 | |
| MG50A7-4 | 50*122.5*40/33 | 61,86 | 37,94 | |
| MG55A7-1M2T1 | 55*152*45/29 | 71,57 | 44,76 | |
| MG55A7-2M2T1 | 55*151.5*45/29 | 71,57 | 44,76 | |
| MG55A7-3 | 55*152*45/29 | 71,57 | 44,76 | |
| MG65A7-1 | 65*135*41/34 | 44,00 | 34,18 | |
| MG65A7-2 | 65*135*42/34 | 44,00 | 34,18 | |

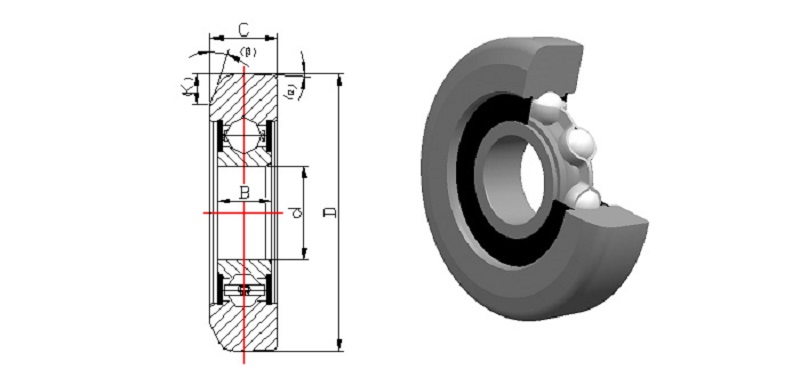

MGxxA8-x
| Mã Bạc Đạn | Kích Thước (mm) | Chịu Tải Định Mức (KN) | Mã Phụ Tùng | |
| d*D*C/B | Cr | Cor | ||
| MG25A8-1 | 25*78.7*25/17 | 17,22 | 11,39 | |
| MG30A8-1 | 30*78*28/24 | 27,00 | 15,19 | |
| MG35A8-1M2T1 | 35*108*25/21 | 33,36 | 19,21 | |
| MG35A8-2M2T1 | 35*109.2*25/21 | 33,36 | 19,21 | |
| MG40A8-3M2T1 | 40*118*28/23 | 40,75 | 24,01 | |
| MG40A8-4M2T1 | 40*119.2*28/23 | 40,75 | 24,01 | |
| MG40A8-5M2T1 | 40*120.2*28/23 | 40,75 | 24,01 | |
| MG50A8-1 | 50*129*38/27 | 61,86 | 37,94 | |

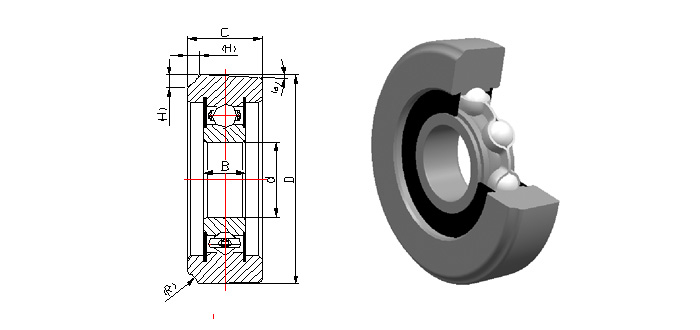

MGxxA9-x.
| Mã Bạc Đạn | Kích Thước (mm) | Chịu Tải Định Mức (KN) | Mã Phụ Tùng | |
| d*D*C/B | Cr | Cor | ||
| MG35A9-1 | 35*91.24*31.88/21 | 33.36 | 19.21 | MG207FFH |
| MG35A9-2 | 35*110.26*30.28/21 | 33.36 | 19.21 | MG207FFK |
| MG35A9-3 | 35*111*31/21 | 33.36 | 19.21 | |
| MG35A9-4 | 35*91*31/21 | 33.36 | 19.21 | |

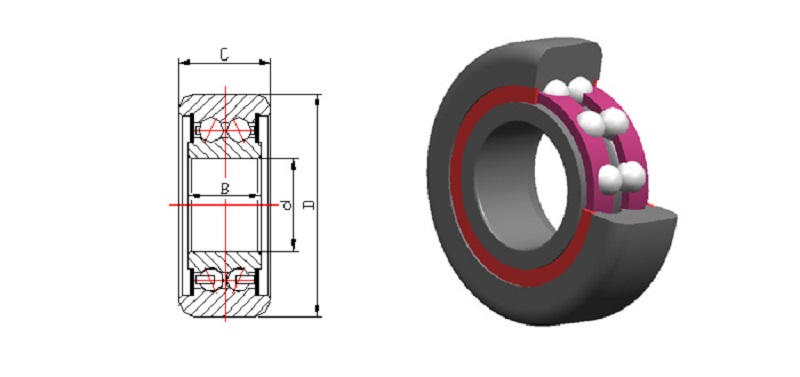

MGxxB1-x
| Mã Bạc Đạn | Kích Thước (mm) | Chịu Tải Định Mức (KN) | Mã Phụ Tùng | |
| d*D*C/B | Cr | Cor | ||
| MG25B1-1 | 25*88.6*30.5/25.5 | 21,61 | 15,88 | |
| MG25B1-2 | 25*47*28/30 | 14,12 | 25,82 | |
| MG25B1-3 | 25*70*26/21 | 21,61 | 15,88 | |
| MG30B1-2M1 | 30*72.1*30/24 | 28,10 | 20,00 | |
| MG30B1-3M1 | 30*84.9*31/24 | 28,10 | 20,00 | |
| MG40B1-2 | 40*90.5*29/29 | 26,80 | 23,60 | |
| MG55B1-1 | 55*110*26/26 | 31,60 | 32,40 | |
| MG60B1-1 | 60*126*31/31 | 55,21 | 53,27 | |

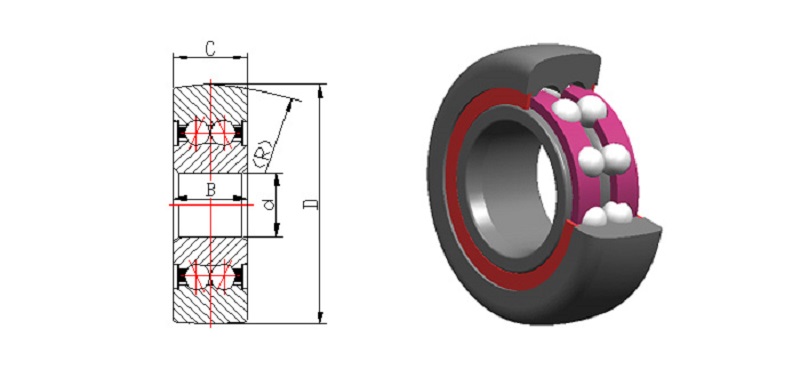

MGxxB2-x
| Mã Bạc Đạn | Kích Thước (mm) | Chịu Tải Định Mức (KN) | Mã Phụ Tùng | |
| d*D*C/B | Cr | Cor | ||
| MG28B2-1 | 28*77.6*28/23 | 28,10 | 20,00 | |
| MG30B2-1 | 30*70*27/24 | 25,92 | 20,66 | |
| MG30B2-2M1 | 30*70.2*24/24 | 21,57 | 16,24 | |
| MG30B2-3 | 30*75.6*26/24 | 25,92 | 20,66 | LR 5206 |
| MG35B2-1 | 35*90*27/27 | 33,94 | 26,67 | |
| MG35B2-2 | 35*90*34.9/34.9 | 44,50 | 35,55 | |
| MG40B2-1M1 | 40*100*36.5/36.5 | 60,00 | 43,00 | |
| MG40B2-2 | 40*104.2*43/30.2 | 38,20 | 30,20 | |
| MG40B2-3 | 40*127.3*43/30.2 | 38,20 | 30,20 | |
| MG45B2-1 | 45*109.4*38.5/30 | 47,00 | 38,00 | |
| MG50B2-1 | 50*120*30/30 | 43,30 | 43,20 | |
| MG60B2-1M1 | 60*149.4*41.5/36.5 | 53,70 | 55,70 | |

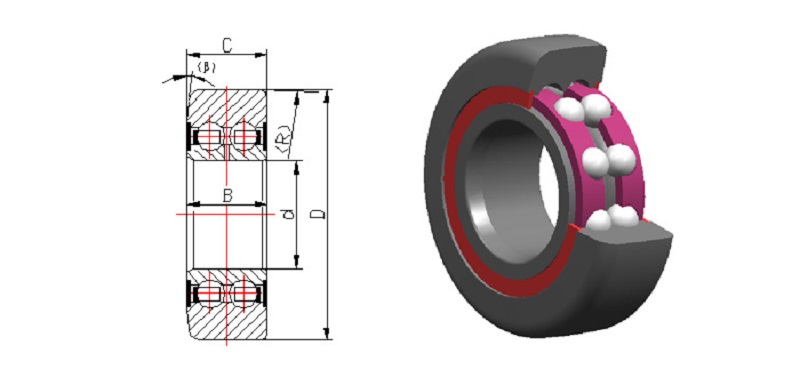

MGxxB7-x
| Mã Bạc Đạn | Kích Thước (mm) | Chịu Tải Định Mức (KN) | Mã Phụ Tùng | |
| d*D*C/B | Cr | Cor | ||
| MG28B7-1 | 28*70*23/22.5 | 17,30 | 14,70 | |
| MG28B7-2M1 | 28*69.9*23/22.5 | 17,30 | 14,70 | |
| MG28B7-8M1 | 28*75.3*23/22.5 | 17,30 | 14,70 | |
| MG28B7-9M1 | 28*75.6*23/22.5 | 17,30 | 14,70 | |
| MG28B7-10M1 | 28*75.9*23/22.5 | 17,30 | 14,70 | |
| MG30B7-1 | 30*78.2*24/24 | 20,02 | 15,46 | |
| MG30B7-2 | 30*78.6*24/24 | 20,02 | 15,46 | |
| MG30B7-3 | 30*79*24/24 | 20,02 | 15,46 | |
| MG30B7-4 | 30*79.4*24/24 | 20,02 | 15,46 | |
| MG30B7-9 | 30*76*24/24 | 16,90 | 21,39 | |
| MG30B7-17 | 30*75.3*24/23.5 | 28,49 | 20,97 | |
| MG30B7-18 | 30*75.6*24/23.5 | 28,49 | 20,97 | |
| MG30B7-19 | 30*75.9*24/23.5 | 28,49 | 20,97 | |
| MG35B7-2 | 35*80.9*26/26 | 25,80 | 21,07 | |
| MG35B7-3 | 35*81.2*26/26 | 25,80 | 21,07 | |
| MG35B7-4 | 35*81.5*26/26 | 25,80 | 21,07 | |
| MG40B7-12M1 | 40*89.9*29/28.8 | 38,20 | 30,20 | |
| MG40B7-13M1 | 40*90.2*29/28.8 | 38,20 | 30,20 | |
| MG40B7-14M1 | 40*90.5*29/28.8 | 38,20 | 30,20 | |
| MG40B7-19 | 40*89.9*29/28.8 | 38,20 | 30,20 | |
| MG40B7-20 | 40*90.2*29/28.8 | 38,20 | 30,20 | |
| MG40B7-21 | 40*90.5*29/28.8 | 38,20 | 30,20 | |
| MG40B7-22M1 | 40*88.8*29/28.7 | 36,40 | 28,50 | |
| MG40B7-23M1 | 40*89.9*29/28.9 | 30,00 | 22,50 | MRS1393 |
| MG40B7-24M1 | 40*90.2*29/28.9 | 30,00 | 22,50 | MRS1394 |
| MG40B7-25M1 | 40*90.5*29/28.9 | 30,00 | 22,50 | MRS1395 |
| MG45B7-1 | 45*105.4*34/29 | 37,94 | 33,10 | |
| MG45B7-2 | 45*105.7*34/29 | 37,94 | 33,10 | |
| MG45B7-3 | 45*106*34/29 | 37,94 | 33,10 | |
| MG45B7-4 | 45*106.4*34/29 | 37,94 | 33,10 | |
| MG45B7-5 | 45*105.4*34/34 | 50,70 | 40,82 | |
| MG45B7-6 | 45*105.7*34/34 | 50,70 | 40,82 | |
| MG45B7-7 | 45*106.0*34/34 | 50,70 | 40,82 | |
| MG45B7-8M1 | 45*105.4*34/34 | 50,70 | 40,82 | |
| MG45B7-9M1 | 45*105.8*34/34 | 50,70 | 40,82 | |
| MG45B7-10M1 | 45*106.1*34/34 | 50,70 | 40,82 | |
| MG45B7-11M1 | 45*105.4*34/33.5 | 50,70 | 40,82 | |
| MG45B7-12M1 | 45*105.8*34/33.5 | 50,70 | 40,82 | |
| MG45B7-13M1 | 45*106.1*34/33.5 | 50,70 | 40,82 | |
| MG45B7-14 | 45*105.4*34/29 | 37,94 | 33,10 | |
| MG45B7-15 | 45*105.7*34/29 | 37,94 | 33,10 | |
| MG45B7-16 | 45*106*34/29 | 37,94 | 33,10 | |
| MG45B7-17 | 45*105.4*34/33.5 | 50,70 | 40,82 | |
| MG45B7-18 | 45*105.8*34/33.5 | 50,70 | 40,82 | |
| MG45B7-19 | 45*106.1*34/33.5 | 50,70 | 40,82 | |
| MG45B7-20 | 45*105.4*34/33.5 | 50,70 | 40,82 | |
| MG50B7-1M1 | 50*124.25*32/30.2 | 41,00 | 40,00 | |
| MG50B7-2M1 | 50*123.9*32/30.2 | 41,00 | 40,00 | |
| MG65B7-1T | 65*136*42/34 | 58,50 | 63,10 | |
| MG65B7-2 | 65*135.1*42/34 | 61,45 | 62,30 | |
| MG65B7-3 | 65*135.6*42/34 | 61,45 | 62,30 | |
| MG65B7-4 | 65*136*42/34 | 61,45 | 62,30 | |
| MG65B7-5M1 | 65*135.3*42/34 | 61,45 | 62,30 | |

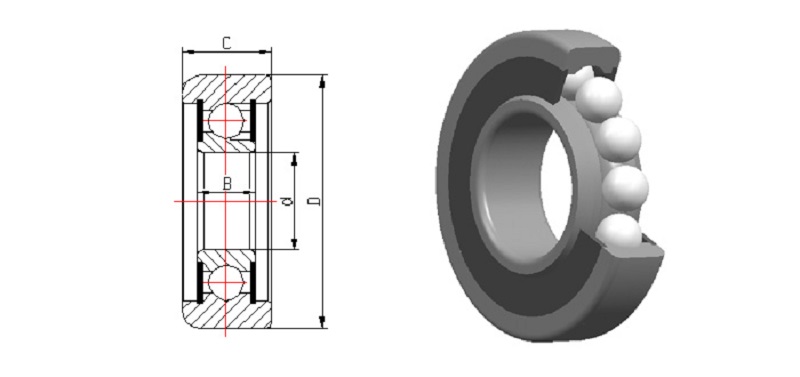

MGxxC1-x
| Mã Bạc Đạn | Kích Thước (mm) | Chịu Tải Định Mức (KN) | Mã Phụ Tùng | |
| d*D*C/B | Cr | Cor | ||
| MG35C1-4 | 35*92*31/20 | 43,7 | 30,7 | |
| MG35C1-5 | 35*111.5*30/20 | 43,7 | 30,7 | |
| MG35C1-6 | 35*107.8*24.8/21 | 43,7 | 30,7 | |
| MG40C1-1 | 40*110*32/23 | 40,66 | 36,65 | |
| MG40C1-4 | 40*101*34/25 | 40,66 | 36,65 | |
| MG45C1-1 | 45*102*28.5/19 | 40,66 | 36,65 | |
| MG45C1-2 | 45*100.96*28.45/19 | 28,7 | 29 | |
| MG55C1-1T | 55*149.5*45*33 | 110 | 96,69 | |
| MG55C1-2T | 55*149*45*33 | 110 | 96,69 | |
| MG55C1-3T | 55*151*45*33 | 110 | 96,69 | |

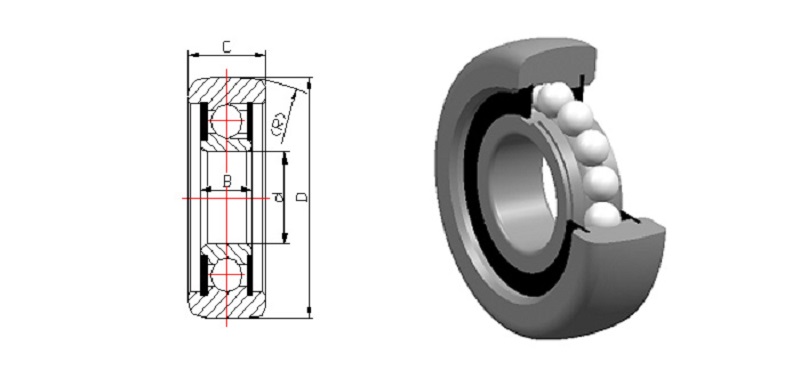

MGxxC2-x
| Mã Bạc Đạn | Kích Thước (mm) | Chịu Tải Định Mức (KN) | Mã Phụ Tùng | |
| d*D*C/B | Cr | Cor | ||
| MG30C2-1M1 | 30*78*24/22 | 30,00 | 22,00 | |
| MG35C2-1 | 35*88.5*33/29 | 44,00 | 30,70 | |
| MG45C2-1 | 45*101.3*28.3/19 | 40,66 | 36,65 | |
| MG90C2-1M1 | 90*400*60/58 | 480,00 | 620,00 | |
| MG90C2-2M1 | 90*400*58/60 | 480,00 | 620,00 | |

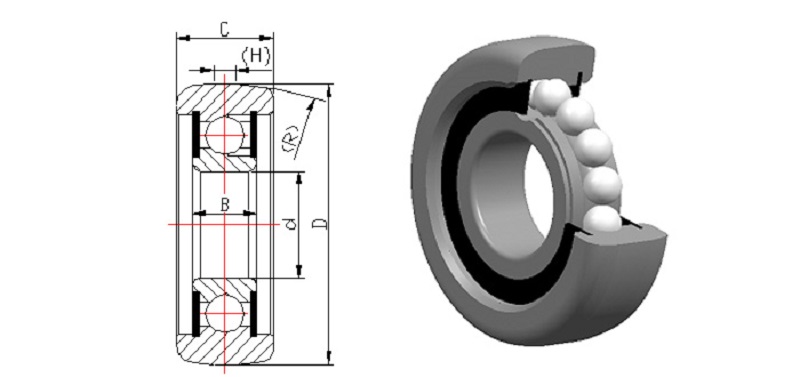

MGxxC4-x
| Mã Bạc Đạn | Kích Thước (mm) | Chịu Tải Định Mức (KN) | Mã Phụ Tùng | |
| d*D*C/B | Cr | Cor | ||
| MG50C4-1 | 50*163*46/43 | 76,65 | 68,95 | |
| MG60C4-1 | 60*126.8*31.12/22 | 57,42 | 61,70 | |
| MG60C4-2 | 60*126.8*31.2/22 | 57,42 | 61,70 | |
| MG65C4-1 | 65*183.5*45/33 | 93,10 | 89,40 | |
| MG100C4-1M11 | 100*250*65/47 | 182,00 | 199,00 | |

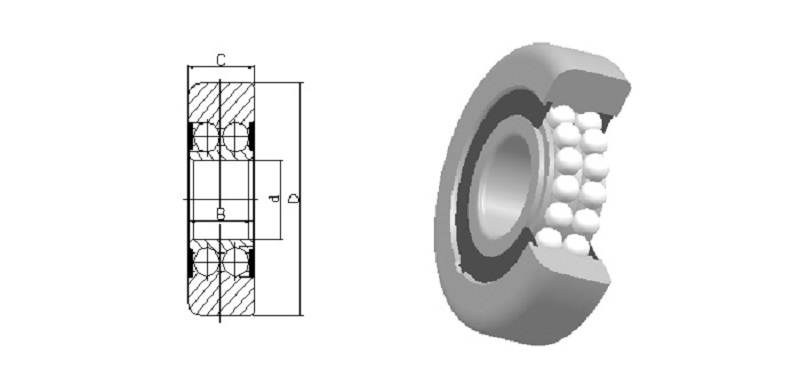

MGxxD1-x
| Mã Bạc Đạn | Kích Thước (mm) | Chịu Tải Định Mức (KN) | Mã Phụ Tùng | |
| d*D*C/B | Cr | Cor | ||
| MG36D1-1 | 36*108.8*28/28 | 41,55 | 51,36 | |
| MG36D1-2 | 36*108*28/28 | 41,55 | 51,36 | |
| MG36D1-4 | 36*109.5*28/28 | 43,83 | 51,37 | |
| MG40D1-1 | 40*124*43/30 | 74,08 | 59,76 | |
| MG55D1-2 | 55*163.58*60/49.2 | 138,26 | 129,4 | MG5311VZZA |
| MG55D1-4 | 55*163.58*52.5/49.2 | 138,26 | 129,4 | MG5311VFFA |

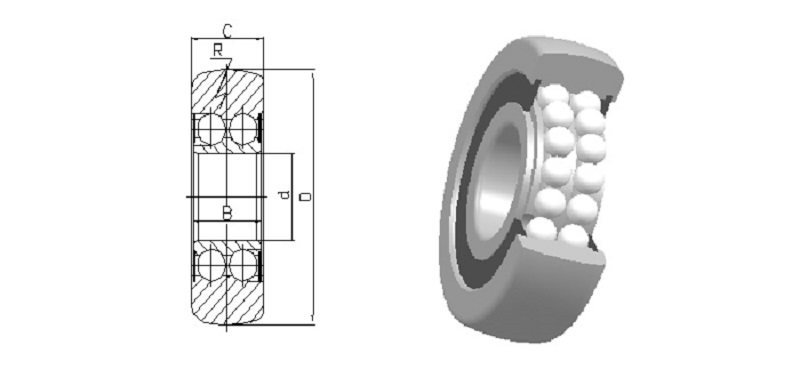

MGxxD2-x
| Mã Bạc Đạn | Kích Thước (mm) | Chịu Tải Định Mức (KN) | Mã Phụ Tùng | |
| d*D*C/B | Cr | Cor | ||
| MG40D2-1 | 40*103.5*44.5/30 | 74,08 | 59,76 | |
| MG40D2-2 | 40*103.5*43/30 | 74,08 | 59,76 | |
| MG40D2-3 | 40*126.6*43/30 | 74,08 | 59,76 | |
| MG40D2-4 | 40*103.5*43/30 | 74,08 | 59,76 | |
| MG40D2-5 | 40*126.5*43/30 | 74,08 | 59,76 | |
| MG55D2-1 | 55*159.25*47.8/38.8 | 122,48 | 89,06 | |
| MG55D2-2 | 55*136.8*47.8/38.5 | 122,48 | 89,06 | |
| MG55D2-3 | 55*136.8*47.8/33.3 | 103 | 78 | |

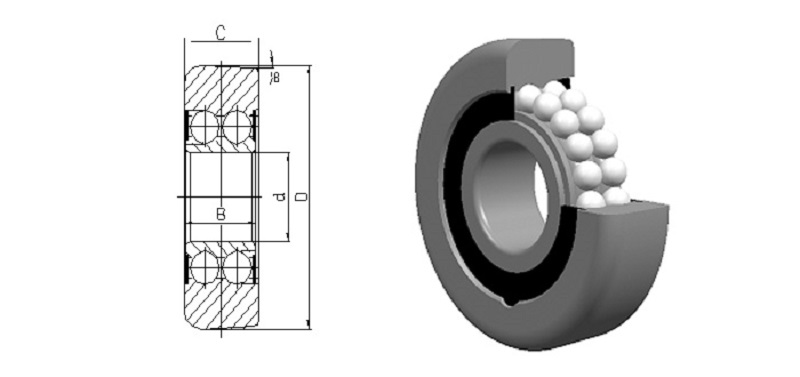

MGxxD3-x
|
Mã Bạc Đạn |
Kích Thước (mm) |
Chịu Tải Định Mức (KN) |
Mã Phụ Tùng |
|
|
d*D*C/B |
Cr |
Cor |
||
|
MG40D3-1T |
40*107/106*40/30.2 |
74,08 |
59,76 |
C40X107 |
|
MG40D3-2T |
40*103.0/98*44/30.2 |
74,08 |
59,76 |
|
|
MG40D3-3T |
40*104.1/101.6*42.5/30.2 |
74,08 |
59,76 |
|
|
MG40D3-4T |
40*126.9/122.75*44.5/30.2 |
74,08 |
59,76 |
|
|
MG40D3-5 |
40*103.5*43/30.2 |
74,08 |
59,76 |
|
|
MG40D3-6 |
40*127*43/30.2 |
74,08 |
59,76 |
|
|
MG55D2-2 |
55*136.8*47.8/38.5 |
122,48 |
89,06 |
|
|
MG55D2-3 |
55*136.8*47.8/33.3 |
103 |
78 |
|

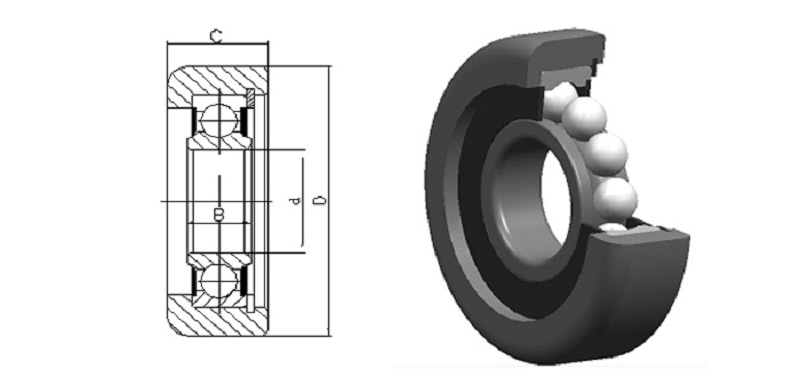

MGxxE1-x
|
Mã Bạc Đạn |
Kích Thước (mm) |
Chịu Tải Định Mức (KN) |
Mã Phụ Tùng |
|
|
d*D*C/B |
Cr |
Cor |
||
|
MG25E1-1 |
25*70.2/55*22*15 |
14,00 |
7,87 |
|
|
MG30E1-1 |
30*85*31/19 |
26,70 |
14,90 |
|
|
MG35E1-1 |
35*92*31.2/20 |
38,74 |
26,79 |
|
|
MG35E1-2 |
35*111.2*30/20 |
38,74 |
26,79 |
|
|
MG35E1-3 |
35*92*31.5/21 |
38,74 |
26,79 |
|
|
MG35E1-4 |
35*92.2*31.2/20 |
38,74 |
26,79 |
MG207FFUE |
|
MG35E1-5 |
35*112.7*30/20 |
38,74 |
26,79 |
|
|
MG35E1-6 |
35*98.5*28/20 |
38,74 |
26,79 |
|
|
MG35E1-7 |
35*89.3*30/17 |
25,60 |
15,50 |
|
|
MG35E1-8 |
35*88.5*30/20 |
38,74 |
26,79 |
|
|
MG40E1-1 |
40*111.2*32.2/21.5 |
56,30 |
39,00 |
|
|
MG40E1-3 |
40*95*28.58/21 |
40,20 |
30,10 |
|
|
MG50.8E1-1 |
50.8*132.7*30/25 |
50,00 |
39,00 |
|
|
MG50.8E1-2 |
50.8*126.75*33/25 |
50,00 |
39,00 |
|
|
MG50E1-2 |
50*126.75*30/25 |
50,00 |
39,00 |
|
|
MG55E1-1 |
55*163.58*52.5/49.2 |
138,26 |
129,40 |
|
|
MG55E1-2 |
55*163.58*52.5/49.2 |
138,26 |
129,40 |
|
|
MG55E1-3 |
55*166.5*52.5/49.2 |
138,26 |
129,40 |
|
|
MG55E1-4 |
55*163*52.5/49.2 |
138,26 |
129,40 |
|

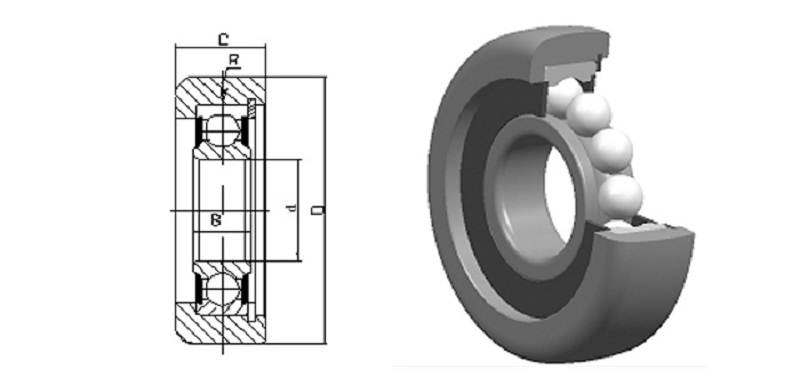

MGxxE2-x
|
Mã Bạc Đạn |
Kích Thước (mm) |
Chịu Tải Định Mức (KN) |
Mã Phụ Tùng |
|
|
d*D*C/B |
Cr |
Cor |
||
|
MG30E2-1 |
30*88.5*29/16.59 |
23,00 |
19,05 |
|
|
MG30E2-2 |
30*89.0*29/16.59 |
23,00 |
19,05 |
|
|
MG30E2-3 |
30*86.7*28.6/16.6 |
23,00 |
19,05 |
MG206FFW |
|
MG35E2-1 |
35*101.35*28.6/21 |
38,74 |
26,79 |
MG207FFU |
|
MG35E2-2 |
35*101.5*26/20 |
38,74 |
26,79 |
|
|
MG35E2-3 |
35*92.5*31/21 |
38,74 |
26,79 |
|
|
MG35E2-4 |
35*82.2*31.2/20 |
38,74 |
26,79 |
|
|
MG35E2-5 |
35*88.8*30/25 |
38,74 |
26,79 |
|
|
MG40E2-3 |
40*102.9*43/30 |
56,50 |
51,80 |
MG5208VFFA |
|
MG40E2-4 |
40*127.4*43/30 |
56,50 |
51,80 |
|
|
MG40E2-5 |
40*126.5*43/30 |
56,50 |
51,80 |
|
|
MG40E2-6 |
40*127.4*45/30 |
56,50 |
51,80 |
MG5208VFFPA |
|
MG40E2-7 |
40*104*43/30 |
56,50 |
51,80 |
|
|
MG40E2-8 |
40*104.3*41/30 |
56,50 |
51,80 |
MG5208VFFQQ |
|
MG40E2-9M45 |
40*111.6*32.2/21.5 |
56,30 |
39,00 |
|
|
MG40E2-11 |
40*126.8*43/30 |
56,50 |
51,80 |
|
|
MG40E2-12 |
40*105*43/30 |
56,50 |
51,80 |
|
|
MG40E2-13 |
40*104.2*43/30 |
56,50 |
51,80 |
|
|
MG40E2-15 |
40*128*43/30 |
56,50 |
51,80 |
|
|
MG40E2-20 |
40*127.3*43/30 |
56,50 |
51,80 |
|
|
MG50E2-1 |
50*163.83*43/30.2 |
69,73 |
69,55 |
MG5210VFF |
|
MG55E2-1 |
55*189.48*45.97/38.5 |
83,97 |
84,06 |
MG5211VFF |
|
MG55E2-2 |
55*159.2*47.8/38.5 |
83,97 |
84,06 |
MG5211VFFA |
|
MG55E2-3 |
55*100*50/56 |
|
|
|
|
MG60E2-1 |
60*202.18*54.1/36.5 |
104,44 |
102,79 |
MG5212VZZA |
|
MG60E2-2 |
60*189.48*54/36.5 |
104,44 |
102,79 |
MG5212VZZ |
|
MG60E2-3 |
60*205*54.1/36.5 |
104,44 |
102,79 |
MG5212VZZＢ |
|
MG65E2-1 |
65*188.3*52.3/46.8 |
122,00 |
136,00 |
MG5213VFF |
|
MG65E2-2 |
65*188*52/47 |
122,00 |
136,00 |
|
|
MG65E2-3 |
65*188.4*52/47 |
122,00 |
136,00 |
|
|
MG65E2-4 |
65*188*52/47 |
122,00 |
136,00 |
|

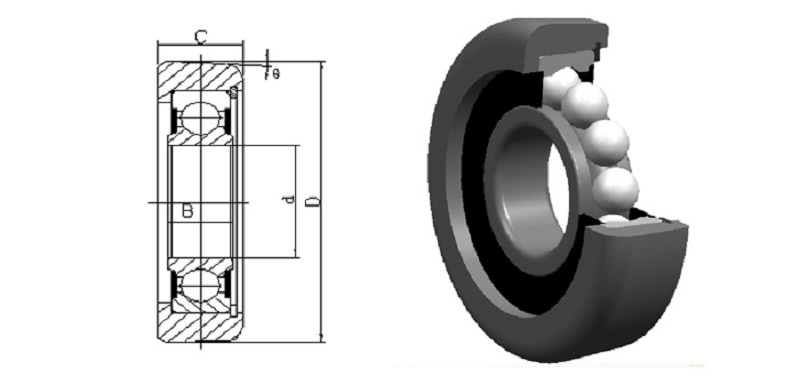

MGxxE3-x
|
Mã Bạc Đạn |
Kích Thước (mm) |
Chịu Tải Định Mức (KN) |
Mã Phụ Tùng |
|
|
d*D*C/B |
Cr |
Cor |
||
|
MG28E3-1 |
28*78.5*24/21 |
14,97 |
10,04 |
|
|
MG30E3-1 |
30*79.5/77.7*28.58/16.6 |
14,97 |
10,04 |
MG206FFH |
|
MG30E3-2 |
30*86.38*28.58/16.6 |
14,97 |
10,04 |
MG206FFK |
|
MG30E3-3 |
30*80.2/78.2*28.58/16.6 |
14,97 |
10,04 |
|
|
MG35E3-1 |
35*88.6*30/25 |
38,74 |
26,97 |
|
|
MG35E3-2 |
35*89.2*30/25 |
38,74 |
26,97 |
|
|
MG35E3-3 |
35*106.5*25/20 |
38,74 |
26,97 |
|
|
MG40E3-1 |
40*100.84*25.4/19.6 |
40,2 |
30,01 |
MG208FFE |
|
MG40E3-2 |
40*104.1*42.5/30.2 |
56,5 |
51,8 |
|
|
MG40E3-3 |
40*103.0*44/30.2 |
56,5 |
51,8 |
|
|
MG40E3-4 |
40*126.9*44.5/30.2 |
56,5 |
51,8 |
|
|
MG40E3-5 |
40*101.6*35/30 |
56,5 |
51,8 |
|
|
MG40E3-6 |
40*126.5*43/30 |
56,5 |
51,8 |
|
|
MG50E3-1 |
50*140*56.5/54 |
115,2 |
70,6 |
|
|
MG40E2-9M45 |
40*111.6*32.2/21.5 |
56,30 |
39,00 |
|
|
MG40E2-11 |
40*126.8*43/30 |
56,50 |
51,80 |
|
|
MG40E2-12 |
40*105*43/30 |
56,50 |
51,80 |
|
|
MG40E2-13 |
40*104.2*43/30 |
56,50 |
51,80 |
|
|
MG40E2-15 |
40*128*43/30 |
56,50 |
51,80 |
|
|
MG40E2-20 |
40*127.3*43/30 |
56,50 |
51,80 |
|
|
MG50E2-1 |
50*163.83*43/30.2 |
69,73 |
69,55 |
MG5210VFF |
|
MG55E2-1 |
55*189.48*45.97/38.5 |
83,97 |
84,06 |
MG5211VFF |
|
MG55E2-2 |
55*159.2*47.8/38.5 |
83,97 |
84,06 |
MG5211VFFA |
|
MG55E2-3 |
55*100*50/56 |
|
|
|
|
MG60E2-1 |
60*202.18*54.1/36.5 |
104,44 |
102,79 |
MG5212VZZA |
|
MG60E2-2 |
60*189.48*54/36.5 |
104,44 |
102,79 |
MG5212VZZ |
|
MG60E2-3 |
60*205*54.1/36.5 |
104,44 |
102,79 |
MG5212VZZＢ |
|
MG65E2-1 |
65*188.3*52.3/46.8 |
122,00 |
136,00 |
MG5213VFF |
|
MG65E2-2 |
65*188*52/47 |
122,00 |
136,00 |
|
|
MG65E2-3 |
65*188.4*52/47 |
122,00 |
136,00 |
|
|
MG65E2-4 |
65*188*52/47 |
122,00 |
136,00 |
|

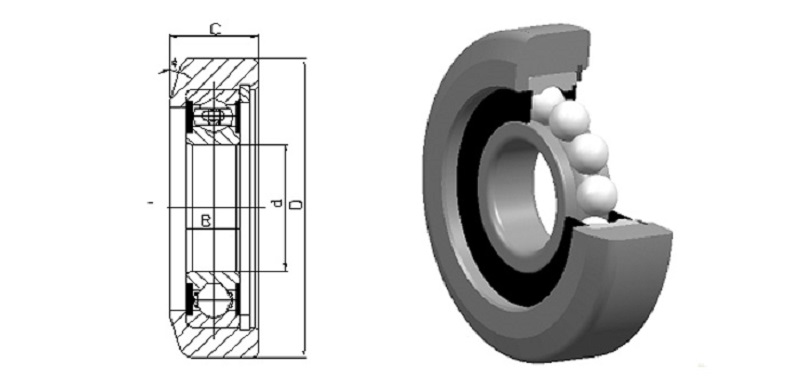

MGxxE6-x
|
Mã Bạc Đạn |
Kích Thước (mm) |
Chịu Tải Định Mức (KN) |
Mã Phụ Tùng |
|
|
d*D*C/B |
Cr |
Cor |
||
|
MG35E6-1 |
35*107.5*25*21 |
38,74 |
26,79 |
|
|
MG35E6-2 |
35*90*25*17 |
25,60 |
15,50 |
|
|
MG45E6-1 |
45*107.2*30.5/19 |
31,67 |
20,68 |
|
|
MG50.8E6-1 |
50.8*126.22*30.6/24.2 |
50,00 |
39,00 |
|
|
MG50.8E6-2 |
50.8*126.99*30.6/24.2 |
50,00 |
39,00 |
|

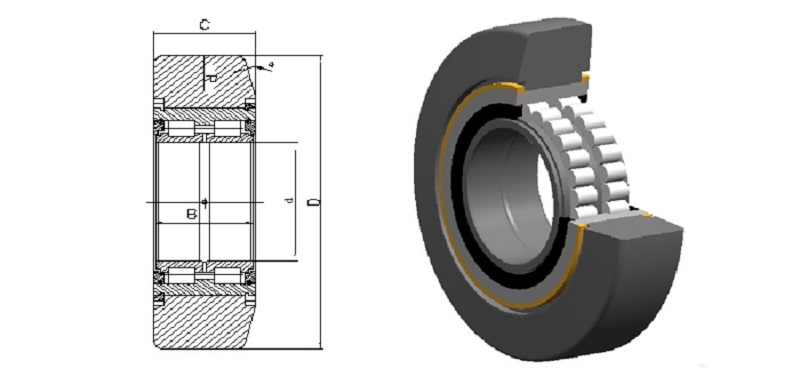

MGxxE7-x
|
Mã Bạc Đạn |
Kích Thước (mm) |
Chịu Tải Định Mức (KN) |
Mã Phụ Tùng |
|
|
d*D*C/B |
Cr |
Cor |
||
|
MG100E7-1M45 |
100*250*68/67 |
330,00 |
580,00 |
|
|
MG100E7-2M45 |
100*249.3*68/67 |
330,00 |
580,00 |
|
|
MG100E7-3M45 |
100*250.3*68/67 |
330,00 |
580,00 |
|
|
MG100E7-4M45 |
100*251*68/67 |
330,00 |
580,00 |
|

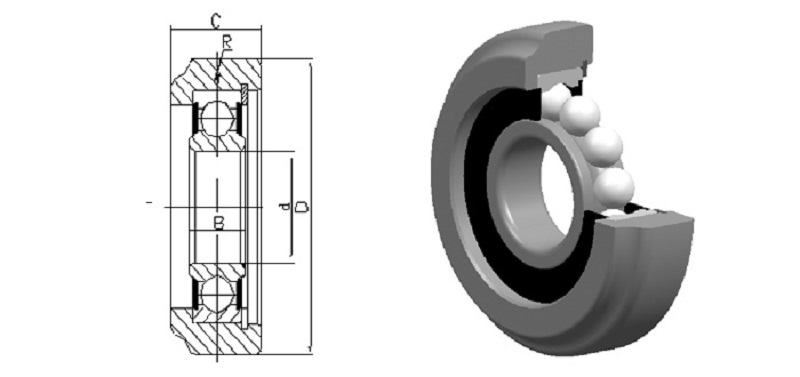

MGxxE9-x
|
Mã Bạc Đạn |
Kích Thước (mm) |
Chịu Tải Định Mức (KN) |
Mã Phụ Tùng |
|
|
d*D*C/B |
Cr |
Cor |
||
|
MG35E9-1 |
35*91.25*31.9/22.5 |
38,74 |
26,79 |
|
|
MG35E9-2 |
35*92*31.5/21 |
38,74 |
26,79 |
|
|
MG35E9-3 |
35*91.2*32/20 |
38,74 |
26,79 |
|
|
MG35E9-4 |
35*111*30/20 |
38,74 |
26,79 |
|
|
MG35E9-5 |
35*111*30/20 |
38,74 |
26,79 |
|
|
MG35E9-6 |
35*91.03*31.88/21 |
38,74 |
26,79 |
|
|
MG35E9-7 |
35*91*32/17 |
25,6 |
15,5 |
|

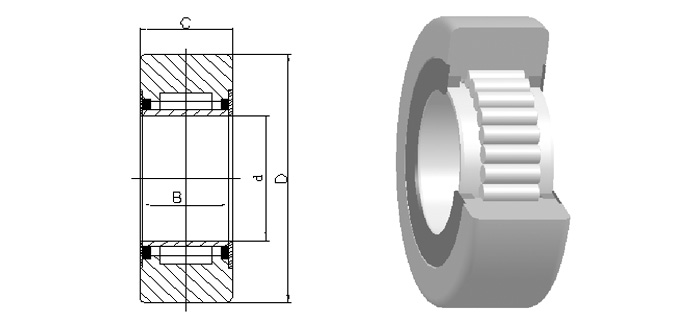

MGxxN1-x
|
Mã Bạc Đạn |
Kích Thước (mm) |
Chịu Tải Định Mức (KN) |
Mã Phụ Tùng |
|
|
d*D*C/B |
Cr |
Cor |
||
|
MG12.7N1-1 |
12.7*47.6*25.4/27 |
38,30 |
60,50 |
|
|
MG30N1-1 |
30*62*20/20 |
55,30 |
35,40 |
|
|
MG30N1-2M1 |
30*54*29/85 |
44,57 |
68,53 |
|
|
MG35N1-1 |
35*72*29/20 |
25,00 |
52,00 |
|
|
MG43N1-1 |
43*91.8*28/21.5 |
35,00 |
61,50 |
|
|
MG45N1-1 |
45*90*32/30 |
75,50 |
121,60 |
|
|
MG75N1-1 |
75*105*30/30 |
124,00 |
259,00 |
|
|
MG15.8N1-1 |
15.875*50.8*31.75/33.5 |
49,00 |
77,40 |
|

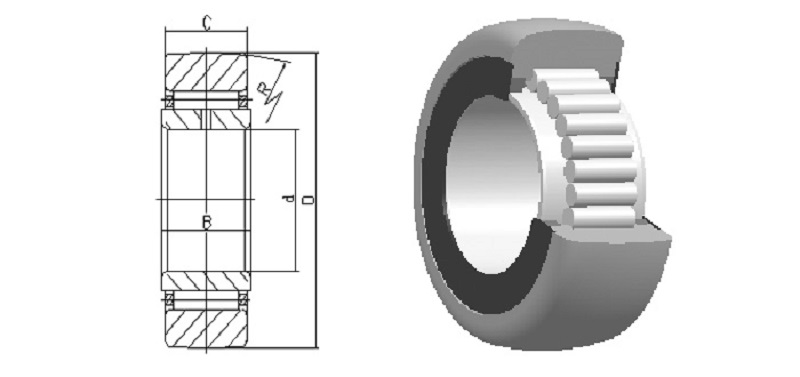

MGxxN2-x
|
Mã Bạc Đạn |
Kích Thước (mm) |
Chịu Tải Định Mức (KN) |
Mã Phụ Tùng |
|
|
d*D*C/B |
Cr |
Cor |
||
|
MG16N2-1 |
16*32*24 |
64,06 |
90,50 |
|
|
MG17N2-1M1 |
17*40*20/21 |
22,20 |
36,20 |
|
|
MG25N2-1M1 |
25*52*19.7/20 |
22,20 |
33,50 |
|
|
MG25N2-2M1 |
25*52*24/25 |
39,98 |
67,81 |
|
|
MG40N2-1 |
40*80*20/20 |
35,00 |
61,50 |
|
|
MG50N2-1 |
50*90*19.8/20 |
43,00 |
84,50 |
|
|
MG50N2-2 |
50*90*20/19 |
43,00 |
84,50 |
|
|
MG55N2-1M1 |
55*110*30.5/31 |
57,80 |
140,00 |
|

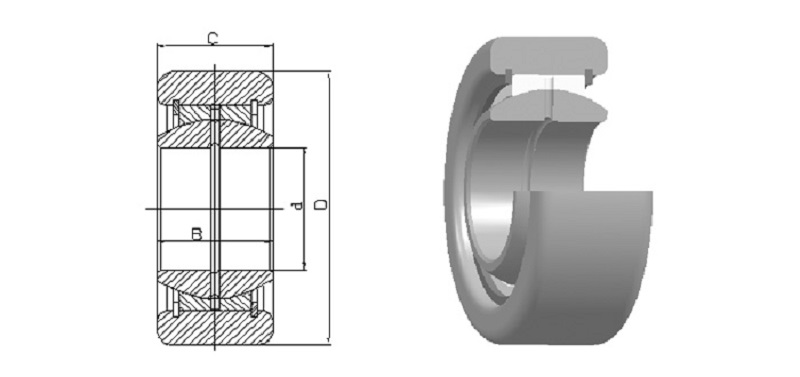

MGxxQ-x
|
Mã Bạc Đạn |
Kích Thước (mm) |
Chịu Tải Định Mức (KN) |
Mã Phụ Tùng |
|
|
d*D*C/B |
Cr |
Cor |
||
|
MG30Q1-1 |
30*62*24.8/25 |
30 |
45 |
|
|
MG35Q7-1 |
35*88.2*30/21 |
35 |
26,44 |
|
|
MG45Q1-1M2 |
45*100*40/40 |
156 |
780 |
|
|
MG50Q1-1M2 |
50*106*50/35 |
156 |
780 |
|

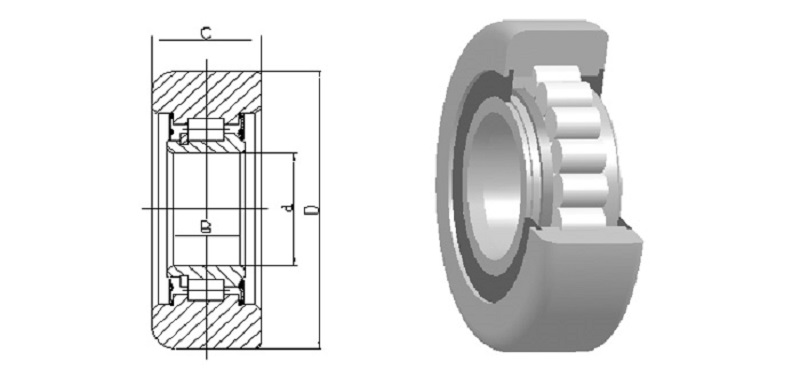

MGxxR1-x
| Mã Bạc Đạn | Kích Thước (mm) | Chịu Tải Định Mức (KN) | Mã Phụ Tùng | |
| d*D*C/B | Cr | Cor | ||
| MG13R1-1M1 | 13*52*18/24 | 25,60 | 31,40 | |
| MG20R1-1M1 | 20*57*18.5/14.8 | 20,10 | 21,00 | |
| MG22R1-1M1 | 22*52*15.5/16.4 | 24,30 | 28,40 | |
| MG25R1-3M1 | 25*62*18/19.5 | 36,40 | 36,70 | MR35-1 |
| MG25R1-4M1 | 25*52*15.5/16.5 | 23,00 | 26,26 | |
| MG25R1-5 | 25*52*20.6/20.6 | 29,48 | 36,75 | 70030 |
| MG25R1-6M1 | 25*52*15.5/16.4 | 24,30 | 28,40 | |
| MG25R1-8M1 | 25*62*18/20 | 36,40 | 36,70 | |
| MG25R1-9 | 25*72*28/28 | 61,00 | 66,00 | 70077V |
| MG25R1-11M1 | 25*70*22/22 | 36,40 | 36,70 | |
| MG25R1-13 | 25*52*15.5/14 | 26,20 | 10,40 | 92205A |
| MG30R1-8M1 | 30*62*16/16.5 | 31,58 | 42,00 | |
| MG30R1-10 | 30*75*23/23 | 47,80 | 76,30 | |
| MG31.75R1-2M1 | 31.75*82.5*25.4/25.4 | 51,00 | 64,00 | |
| MG35R1-8M11 | 35*98.5*33/29.5 | 58,69 | 81,31 | |
| MG35R1-10M1 | 35*84.9*31/24 | 66,40 | 83,70 | |
| MG35R1-11 | 35*97.5*33/30 | 65,42 | 90,07 | |
| MG35R1-12 | 35*96.5*33/30 | 65,42 | 90,07 | |
| MG35R1-15M1 | 35*83.5*33/29.5 | 60,00 | 116,00 | |
| MG35R1-18 | 35*97.5*32/30 | 65,42 | 90,07 | |
| MG35R1-24M1 | 35*70.4*23/24 | 47,75 | 74,96 | |
| MG35R1-25M11 | 35*101.2*29.9/23.4 | 69,30 | 73,90 | |
| MG36R1-1M1 | 36*99.3*28/25 | 72,51 | 107,30 | |
| MG40R1-1M1 | 40*78*26/23 | 50,40 | 64,30 | |
| MG40R1-4M1 | 40*88.5*35/20.5 | 90,90 | 141,00 | |
| MG40R1-9 | 40*125.85*35/30 | 130,00 | 138,00 | |
| MG45R1-6M1 | 45*89.5*22/23 | 54,00 | 73,50 | |
| MG45R1-8M1 | 45*73.5*21/18 | 45,00 | 70,10 | |
| MG50R1-1 | 50*90*20/18 | 65,96 | 82,68 | 92210A |
| MG50R1-2M1 | 50*102*32/25.5 | 66,16 | 81,87 | |
| MG50R1-3M1 | 50*90*20/18.5 | 53,50 | 70,90 | |
| MG50R1-6M1 | 50*102*32/32 | 65,96 | 82,68 | |
| MG50R1-7 | 50*140*42/29 | 148,00 | 164,00 | |
| MG50R1-8M1 | 50*102*30/25 | 65,96 | 82,68 | SX1061PX1 |
| MG50R1-15M1 | 50*100*32/25.5 | 66,16 | 81,87 | |
| MG55R1-7M1 | 55*115.8*38.5/39.5 | 78,40 | 117,70 | |
| MG55R1-14M1 | 55*100.3*28/21 | 65,00 | 85,00 | |
| MG55R1-15 | 55*97*31/29 | 79,00 | 128,00 | |
| MG55R1-16M1 | 55*109.83*26/26.5 | 80,00 | 137,00 | |
| MG55R1-17M1 | 55*100*31/31 | 69,66 | 120,20 | |
| MG60R1-6M1 | 60*107.5*38.1/38.1 | 102,49 | 182,30 | |
| MG60R1-7M1 | 60*110*28/28 | 84,29 | 141,70 | R60*110*28/28 |
| MG60R1-9M1 | 60*120*54/50 | 192,00 | 322,00 | R60X120X54/50 |
| MG60R1-10M1 | 60*113*34/34 | 84,29 | 141,70 | 7E-CRG60*113*34 |
| MG60R1-19M1 | 60*105*35/36 | 102,49 | 182,30 | |
| MG62R1-1M1 | 62*112*36/28 | 76,00 | 103,30 | |
| MG62R1-2 | 62*112*36/28 | 76,00 | 103,30 | |
| MG62R1-3M1 | 62*112*36/28 | 84,29 | 141,70 | |
| MG65R1-4 | 65*115*36/32 | 98,00 | 149,00 | 7E-CRG65X115X36-3 |
| MG65R1-5M1 | 65*115*36/36 | 98,00 | 149,00 | |
| MG65R1-10M1 | 65*115*36/31.7 | 82,50 | 137,40 | |
| MG65R1-11M1 | 65*115.5*36/31.7 | 82,50 | 137,40 | |
| MG70R1-3M1 | 70*129*40/36 | 128,94 | 198,50 | 7E-CRG70X129X40 |
| MG70R1-4M1 | 70*180*81/83(85) | 490,00 | 730,00 | |
| MG70R1-5M1 | 70*189.5*55/45 | 150,00 | 367,00 | |
| MG70R1-7M1 | 70*180*81/83(85) | 490,00 | 730,00 | |
| MG75R1-1M1 | 75*130*35/35 | 88,13 | 147,30 | XR1357-1 |
| MG75R1-2M1 | 75*130*40/40 | 131,30 | 245,50 | XR1365-1 |
| MG75R1-4M1 | 75*126.8*48/40 | 121,00 | 239,00 | |
| MG75R1-5M1 | 75*128*40/40 | 131,30 | 245,50 | 7E-CRG75X128X40-4 |
| MG75R1-6M1 | 75*124*33/33 | 131,30 | 245,50 | 7E-CRG75X124X33-1 |
| MG75R1-8M1 | 75*130*40.2/40 | 131,30 | 245,50 | CRG-75X130X40.2 |
| MG75R1-9M1 | 75*128*40/40 | 110,20 | 196,40 | R75*128*40/40 |
| MG75R1-10M1 | 75*130*40/40 | 110,20 | 196,40 | |
| MG75R1-12 | 75*130*31/31 | 176,00 | 245,00 | |
| MG85R1-1M1 | 85*172*45/34 | 186,13 | 240,00 | R85X172X45/34 |
| MG85R1-2M1 | 85*169*45/34 | 186,13 | 240,00 | |
| MG90R1-1M1 | 90*150*40/40 | 139,80 | 255,60 | |
| MG95R1-1 | 95*207*59/56 | 352,20 | 637,60 | |
| MG100R1-1 | 100*250*65/47 | 290,00 | 550,00 | |
| MG110R1-1M1 | 110*299*66/50 | 513,42 | 707,78 | |
| MG120R1-1 | 120*243*66/48 | 405,00 | 634,00 | SX2453PX1 |
| MG120R1-3 | 120*220*64/67.5 | 347,20 | 637,40 | |

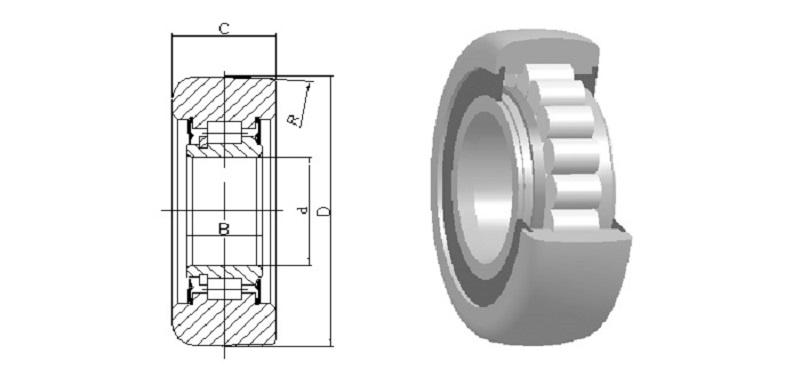

MGxxR2-x
| Mã Bạc Đạn | Kích Thước (mm) | Chịu Tải Định Mức (KN) | Mã Phụ Tùng | |
| d*D*C/B | Cr | Cor | ||
| MG17R2-1M1 | 17*40*20/21 | 28,19 | 35,69 | |
| MG20R2-1M1 | 20*47*24/25 | 71,43 | 55,91 | |
| MG20R2-4M1 | 20*47.1*24/25 | 71,43 | 55,91 | |
| MG25R2-1 | 25*52*15.5/16 | 23 | 26,3 | |
| MG25R2-2M1 | 25*52*24/25 | 39,3 | 52,5 | |
| MG25R2-4M11 | 25*52*17.2/17.2 | 27,8 | 33,2 | |
| MG30R2-2M1 | 30*62*21/23.5 | 37,57 | 52,58 | |
| MG30R2-3BM11 | 30*52.8*19/18 | 27,2 | 39,26 | |
| MG30R2-6M1 | 30*62*21/23.5 | 37,57 | 52,58 | |
| MG35R2-5M11 | 35*60.5*23/20 | 44,5 | 65,79 | |
| MG35R2-6M11 | 35*60.5*23/20 | 44,5 | 65,79 | |
| MG35R2-8M1 | 35*60.5*22/17 | 44,45 | 65,68 | |
| MG35R2-9M1 | 35*61.8*22/17 | 44,45 | 65,68 | |
| MG35R2-17 | 35*62*20/20 | 38,6 | 54,75 | |
| MG40R2-2M1 | 40*105.8*22/23 | 63,18 | 79,77 | |
| MG40R2-3BM11 | 40*81.8*21/18 | 42,7 | 65,7 | |
| MG40R2-4M1 | 40*79.95*22/15.5 | 53 | 63 | |
| MG40R2-5M11 | 40*73.8*25/20 | 51,3 | 74,7 | |
| MG40R2-6M11 | 40*70.8*21/18 | 42,7 | 65,7 | |
| MG40R2-7M1 | 40*91.95*22/15.5 | 65,5 | 60 | |
| MG40R2-8M11 | 40*73.8*25/20 | 51,3 | 74,7 | |
| MG40R2-9M11 | 40*78.1*21/18 | 42,7 | 65,7 | |
| MG40R2-10M11 | 40*70.1*21/18 | 42,7 | 65,7 | |
| MG45R2-3M1 | 45*80.5*25/17 | 51,08 | 86,79 | |
| MG45R2-4M1 | 45*81.8*25/17 | 51,08 | 86,79 | |
| MG45R2-6M11 | 45*74.8*21/17.2 | 51,08 | 86,79 | |
| MG45R2-7M11 | 45*81.8*25/17.2 | 51,08 | 86,79 | |
| MG50R2-1M1 | 50*110*30/32 | 108,5 | 173,3 | |
| MG50R2-3M11 | 50*90.8*27/20 | 64,85 | 92,5 | |
| MG50R2-4 | 50*150*61/63 | 222 | 340 | |
| MG50R2-5M11 | 50*90.8*27/20 | 64,85 | 92,5 | |
| MG50R2-8T | 50*123*34/27 | 94,81 | 113,34 | |
| MG50R2-9M1 | 50*130*63/65 | 223 | 340 | |
| MG52R2-1M1 | 52*110.5*32/26.15 | 65,96 | 82,68 | |
| MG55R2-1 | 55*110*26/26 | 82,53 | 137,46 | |
| MG55R2-2M1 | 55*110*26/26 | 78,4 | 117,7 | |
| MG55R2-3 | 55*110*26/26.2 | 82,53 | 137,46 | |
| MG55R2-4M1 | 55*100.5*28/22 | 63,9 | 87,5 | |
| MG55R2-5M1 | 55*120*40/43 | 168 | 269 | |
| MG60R2-1M11 | 60*110.8*32/22 | 92,9 | 129,1 | |
| MG60R2-2M11 | 60*127.8*34/22 | 92,9 | 129,1 | |
| MG60R2-3M11 | 60*110.8*32/22 | 92,9 | 129,1 | |
| MG60R2-4M1 | 60*150*73/75 | 315 | 493 | |
| MG60R2-5M1 | 60*120.8*37.5/37.5 | 160 | 192 | |
| MG60R2-6 | 60*135*42/44 | 168 | 239 | |
| MG65R2-1 | 65*180.3*72/78.6 | 346 | 595,2 | |
| MG65R2-2M1 | 65*108.7*35/27 | 84,3 | 141,8 | NUTD65H |
| MG65R2-3M1 | 65*120.3*27/23 | 80,8 | 126 | |
| MG65R2-4M1 | 65*130.4*29/25 | 80,8 | 126 | |
| MG65R2-5M1 | 65*160*73/75 | 280 | 460 | |
| MG70R2-1M1 | 70*150*40/42 | 210 | 338 | |
| MG70R2-2M1 | 70*180*83/85 | 490 | 730 | NNTR70X180X85 |
| MG70R2-3M1 | 70*190*58/60 | 304 | 456 | |
| MG70R2-4M1 | 70*160*58/60 | 304 | 456 | |
| MG70R2-5M1 | 70*151.5*36/36 | 140 | 188 | |
| MG75R2-1M1 | 75*160*40/42 | 178,5 | 310 | |
| MG80R2-1M1 | 80*220*60/62 | 455 | 590 | |
| MG90R2-1M1 | 90*190*52/54 | 347 | 556 | NUTR 90 190 |
| MG100R2-1M1 | 100*180*63/65 | 387 | 693 | |
| MG110R2-1M1 | 110*200*63/65 | 410 | 780 | |
| MG140R2-1M1 | 140*250*76/78 | 630 | 1180 | |
| MG140R2-3M1 | 140*300*76/78 | 630 | 1180 | |

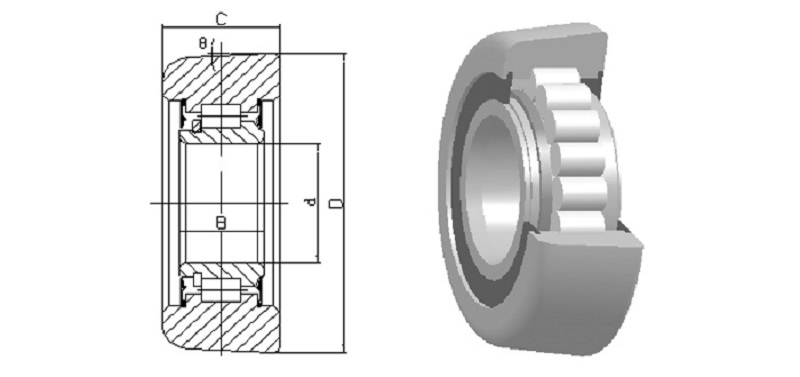

MGxxR3-x
| Mã Bạc Đạn | Kích Thước (mm) | Chịu Tải Định Mức (KN) | Mã Phụ Tùng | |
| d*D*C/B | Cr | Cor | ||
| MG25R3-1M1 | 25*70.5*25/20 | 36,40 | 36,70 | |
| MG25R3-2M1 | 25*70*25/20.5 | 36,40 | 36,70 | |
| MG28R3-1M1 | 28*80*24/15 | 35,90 | 44,10 | |
| MG28R3-2M1 | 28*78*24/21 | 35,90 | 44,10 | |
| MG28R3-3M1 | 28*78.4*24/21 | 35,90 | 44,10 | |
| MG28R3-4M1 | 28*78.2*24/21 | 35,90 | 44,10 | |
| MG28R3-5M1 | 28*77.5*28/18 | 35,90 | 44,10 | |
| MG30R3-1M1 | 30*76*23/19 | 45,66 | 46,00 | |
| MG30R3-2M1 | 30*77*23/19 | 45,66 | 46,00 | |
| MG35R3-1M1 | 35*88*36/31 | 100,00 | 130,00 | |
| MG36R3-1 | 36*102.546*28/25 | 85,00 | 104,00 | |
| MG40R3-1M1 | 40*100*33/29.5 | 92,05 | 108,10 | |
| MG45R3-1M1 | 45*123.5*34/25 | 85,00 | 150,00 | |
| MG50R3-1 | 50*109.35*41/37 | 125,14 | 199,37 | 50945 |
| MG55R3-1 | 55*120*49/45 | 100,00 | 150,00 | |
| MG65R3-1M1 | 65*149*40/40 | 150,00 | 230,00 | |

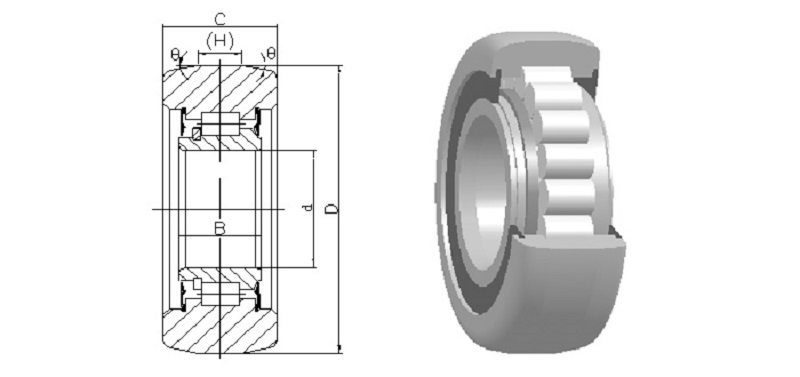

MGxxR4-x
| Mã Bạc Đạn | Kích Thước (mm) | Chịu Tải Định Mức (KN) | Mã Phụ Tùng | |
| d*D*C/B | Cr | Cor | ||
| MG25R4-1 | 25*62*30/34 | 50,60 | 75,50 | |
| MG55R4-1 | 55*94*27/27 | 79,00 | 128,00 | XR0946-1 |
| MG55R4-2 | 55*97*31/31 | 79,00 | 128,00 | |
| MG55R4-3 | 55*96.2*33/33 | 79,00 | 128,00 | XR1057-1 |
| MG65R4-1 | 65*108.6*30/30 | 56,46 | 123,00 | XR1152-1 |
| MG76R4-1 | 76.2X164.5X38.3/29 | 105,00 | 150,00 | |

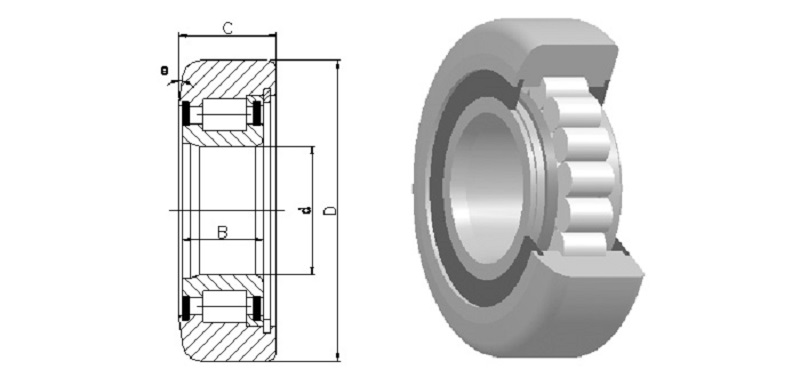

MGxxR6-x
| Mã Bạc Đạn | Kích Thước (mm) | Chịu Tải Định Mức (KN) | Mã Phụ Tùng | |
| d*D*C/B | Cr | Cor | ||
| MG28R6-1M1 | 28*77.2*27/22.5 | 54,97 | 62,89 | |
| MG33R6-1M1 | 33*75.2*24/20.5 | 44,6 | 56,3 | |
| MG33R6-2M1 | 33*75.6*24*20.5 | 44,6 | 56,3 | |
| MG33R6-3M1 | 33*75.9*24/20.5 | 44,6 | 56,3 | |
| MG35R6-3 | 35*78*20/20.5 | 47,75 | 74,96 | |
| MG35R6-4M1 | 35*88.5*32/32 | 100 | 135 | |
| MG35R6-5M1 | 35*88.5*35/36 | 100 | 135 | |
| MG35R6-6M1 | 35*78*23/24 | 58 | 98,5 | |
| MG36R6-1 | 36*90.4*29/23.5 | 75,94 | 93,67 | |
| MG40R6-1 | 40*90.5*29/29 | 65,32 | 84,02 | |
| MG40R6-2M1 | 40*78*24/24 | 70 | 80 | |
| MG40R6-3M1 | 40*79.7*31/31 | 90,9 | 141 | |
| MG45R6-1M1 | 45*105.4*34/33.5 | 95,64 | 115,3 | |
| MG45R6-2M1 | 45*115.5*34/33.5 | 95,64 | 115,3 | |
| MG45R6-3M1 | 45*115.9*34/33.5 | 95,64 | 115,3 | |
| MG45R6-4T | 45*89.55*30/28.6 | 71 | 128 | |
| MG45R6-6M1 | 45*105.8*34/33.5 | 95,64 | 115,3 | |
| MG45R6-7M1 | 45*106.1*34/33.5 | 95,64 | 115,3 | |
| MG45R6-8M1 | 45*89*30/28.5 | 71 | 128 | |
| MG45R6-9 | 45*106.3*34/33.9 | 119,5 | 166,2 | |
| MG45R6-10M1 | 45*105.2*34/29 | 95,64 | 115,3 | |
| MG45R6-11M1 | 45*106.5*34/29 | 95,64 | 115,3 | |
| MG45R6-12 | 45*127*31.75/29 | 89,98 | 77,82 | |
| MG45R6-13M1 | 45*106.1*34/28.5 | 95,64 | 115,3 | |
| MG50R6-1T | 50*123*34/29 | 94,81 | 113,34 | CG92310T |

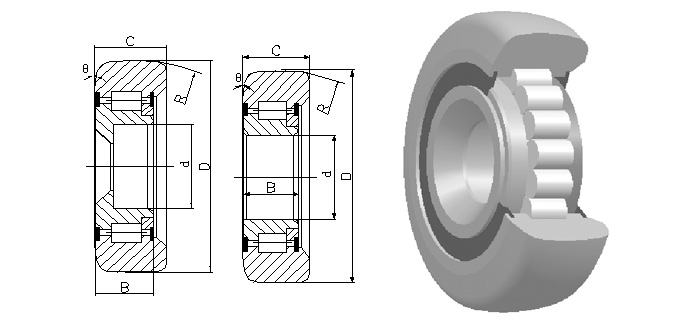

MGxxR7-x
| Mã Bạc Đạn | Kích Thước (mm) | Chịu Tải Định Mức (KN) | Mã Phụ Tùng | |
| d*D*C/B | Cr | Cor | ||
| MG17R7-1M1 | 17*56*19.6/18 | 27,80 | 53,00 | |
| MG25R7-1M1 | 25*78.2*25/17 | 45,80 | 49,00 | |
| MG25R7-2M1 | 25*78.5*30/25 | 54,97 | 62,89 | |
| MG28R7-3M1 | 28*77.2*25.5/22 | 47,50 | 58,20 | |
| MG30R7-1M1 | 30*75.2*24/20 | 57,11 | 67,25 | |
| MG30R7-2M1 | 30*75.45*24/20 | 57,11 | 67,25 | |
| MG30R7-3M1 | 30*75.95*24/20 | 57,11 | 67,25 | |
| MG30R7-9M1 | 30*75.1*24/20.5 | 57,11 | 67,25 | |
| MG30R7-10M1 | 30*75.6*24*20.5 | 57,11 | 67,10 | |
| MG30R7-12M1 | 30*75*24/19.7 | 57,11 | 67,25 | |
| MG30R7-13M1 | 30*76*24/19.7 | 57,11 | 67,25 | |
| MG30R7-15M1 | 30*76.20*24/20 | 57,11 | 67,25 | |
| MG30R7-16M1 | 30*78.20*24/24 | 57,11 | 67,25 | |
| MG30R7-18M1 | 30*79*24/24 | 57,11 | 67,25 | |
| MG30R7-31 | 30*75.2*24/20 | 57,11 | 67,25 | |
| MG30R7-32 | 30*75.7*24/20 | 57,11 | 67,25 | |
| MG30R7-33 | 30*76.2*24/20 | 57,11 | 67,25 | |
| MG30R7-40 | 30*75.9*24/23.5 | 57,11 | 67,25 | |
| MG30R7-46M1 | 30*75.2*24/20.75 | 57,11 | 67,25 | |
| MG32R7-1M1 | 32*77.2*25.5/22 | 44,60 | 56,30 | |
| MG35R7-2BT | 35*78.3*23/21 | 41,00 | 64,00 | 35ZK |
| MG35R7-3BT | 35*77.7*23/21 | 41,00 | 64,00 | 35XK |
| MG35R7-5T | 35*78.8*23/21 | 41,00 | 64,00 | 35ZKL |
| MG35R7-10T | 35*79.3*23/21 | 41,00 | 64,00 | 35ZKL1 |
| MG35R7-11T | 35*79.8*23/21 | 41,00 | 64,00 | 35ZKL2 |
| MG36R7-2M1 | 36*90.2*29/23.5 | 63,18 | 79,77 | |
| MG36R7-6M1 | 36*89.5*29/22 | 75,68 | 93,60 | |
| MG36R7-7M1 | 36*90.5*29/22 | 75,68 | 93,60 | |
| MG40R7-1M1 | 40*89.9*29/28.5 | 68,90 | 98,68 | |
| MG40R7-2M1 | 40*90.2*29/28.5 | 68,90 | 98,68 | |
| MG40R7-4M1 | 40*90.5*29/28.5 | 68,90 | 98,68 | |
| MG40R7-9M1 | 40*89.9*29/28.5 | 68,90 | 98,68 | |
| MG40R7-10 | 40*90.1*29/27 | 63,18 | 79,77 | |
| MG40R7-12M1 | 40*89.9*29/23.8 | 46,10 | 79,80 | |
| MG40R7-15M1 | 40*90.8*29/23.8 | 46,10 | 79,80 | |
| MG42R7-3M1 | 42*105*34/26.2 | 95,64 | 115,30 | |
| MG42R7-4M1 | 42*105.7*34/26.2 | 95,64 | 115,30 | |
| MG42R7-7M1 | 42*105.7*34/28 | 95,64 | 115,30 | |
| MG42R7-8M1 | 42*105.7*34/28 | 95,64 | 115,30 | |
| MG42R7-11M1 | 42*104.7*29/24 | 92,00 | 108,00 | |
| MG42R7-12M1 | 42*105.0*29/24 | 92,00 | 108,00 | |
| MG42R7-13M1 | 42*105.3*29/24 | 92,00 | 108,00 | |
| MG42R7-14M1 | 42*105.6*29/24 | 92,00 | 108,00 | |
| MG45R7-1BT | 45*89.6*30/28.6 | 70,00 | 122,00 | 45ZKJ |
| MG45R7-2BT | 45*88.8*30/28.6 | 70,00 | 122,00 | 45XK |
| MG45R7-3BT | 45*89.15*30/28.6 | 70,00 | 122,00 | 45ZK |
| MG45R7-4M1 | 45*107*26/26 | 95,64 | 115,30 | |
| MG50R7-2M1 | 50*123.4*40/40 | 137,80 | 170,00 | |
| MG50R7-4M1 | 50*124.2*44/30 | 101,00 | 135,00 | |
| MG60R7-1 | 60*107.5*36/37 | 84,29 | 141,70 | |
| MG65R7-1M1 | 65*123*37/34.8 | 107,00 | 180,50 | |
| MG65R7-4 | 65*135.6*42/35 | 128,94 | 198,50 | |
| MG65R7-5 | 65*123*37/38 | 107,00 | 180,50 | |
| MG75R7-1M1 | 75*129.3*34/32 | 121,66 | 189,20 | |
| MG75R7-2M1 | 75*130*34/32 | 121,66 | 189,20 | |
| MG75R7-4M1 | 75*129.3*34/34 | 146,00 | 253,00 | |
| MG75R7-5M1 | 75*130*34/34 | 146,00 | 253,00 | |
| MG82R7-1M1 | 82*149*42*42.7 | 291,00 | 380,00 | |
Không có bình luận nào cho bài viết.
